Phoenix Contact 1569579
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

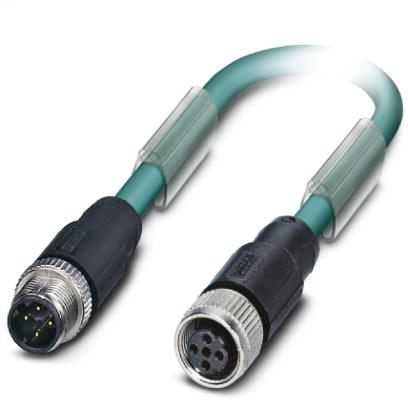

Bus system cable, Ethernet CAT5 (100 Mbps), 4-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12, D-coded, on Socket straight M12, D-coded, cable length: 15 mBus system cable 1569579
Phoenix Contact 1569579 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Ambient temperature (operation)
- -20 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- Attenuation
- 3.2 dB (with 1 MHz)
- 12.1 dB (at 16 MHz)
- 17.1 dB (at 31.25 МHz)
- 32 dB (at 100 MHz)
- 24.8 dB (at 62.5 МHz)
- 9.5 dB (at 10 MHz)
- 13.6 dB (at 20 МHz)
- 6 dB (at 4 МHz)
- AWG signal line
- 26
- Cable abbreviation
- 02YS(ST)C11Y
- Cable capacity
- approx. 45 nF/km (at 1 kHz)
- Cable structure
- 2x2xAWG26/7; SF/UTP
- Cable type
- PUR ETHERNET 2x2 FLEX
- Cable type (abbreviation)
- 93E
- Cable weight
- 42 kg/km
- Conductor cross section
- 2x 2x 0.14 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 7x 0.16 mm
- Core diameter including insulation
- 0.98 mm
- Coupling resistance
- ≤ 100.00 mΩ/m (at 10 MHz)
- Current carrying capacity of cable
- 2 A (according to DIN VDE 0891-1)
- External cable diameter D
- 6.4 mm ±0.2 mm
- External sheath, color
- water blue RAL 5021
- Flame resistance
- in acc. to UL VW1
- according to IEC 60332-1-2
- Halogen-free
- according to IEC 60754-1
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 290.00 Ω/km
- Material conductor insulation
- Foamed PE
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 8 x D
- Near end crosstalk attenuation (NEXT)
- 50.3 dB (at 10 MHz)
- 56.3 dB (at 4 МHz)
- 47.2 dB (at 16 MHz)
- 65.3 dB (with 1 MHz)
- 35.3 dB (at 100 MHz)
- 42.9 dB (at 31.25 МHz)
- 38.4 dB (at 62.5 МHz)
- 45.8 dB (at 20 МHz)
- Nominal voltage, cable
- ≤ 100 V (Peak value, not for high-power applications)
- Optical shield covering
- 70 %
- Outer sheath, material
- PUR
- Outer sheath thickness
- 1.2 mm
- Overall twist
- Two pairs with two fillers to the core
- Resistance to oil
- according to EN 60811-2-1
- Return Loss
- 24.1 dB (at 8 МHz)
- 25 dB (at 20 МHz)
- 25 dB (at 16 MHz)
- 25 dB (at 10 MHz)
- 23 dB (at 4 МHz)
- 23.6 dB (at 31.25 МHz)
- 21.5 dB (at 62.5 МHz)
- 20.1 dB (at 100 MHz)
- Shielding
- Aluminum-coated foil, tinned copper braided shield
- Signal runtime
- 5.3 ns/m
- Standards/specifications
- Electrical requirements EN 50288-2-2
- Tensile strength GRP
- ≤ 80 N
- Test voltage Core/Core
- 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 700 V (50 Hz, 1 min.)
- Twisted pairs
- 2 cores to the pair
- UL AWM style
- 20963 (80°C/30 V)
- Wave impedance
- 100 Ω ±5 Ω (at 100 MHz)
- Wire colors
- white/orange-orange, white/green-green
Dimensions
- Length of cable
- 15 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- V0
