Phoenix Contact 1550944
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

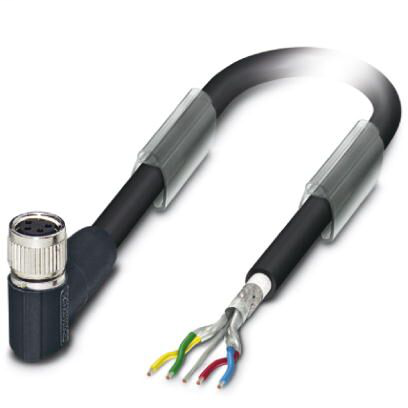

Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, free cable end, on Socket angled M8, cable length: 20 mBus system cable - SAC-4P-20,0-950/M 8FR - 1550944
Phoenix Contact 1550944 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Acceleration
- 4 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG power supply
- 22
- AWG signal line
- 26
- Bending radius
- 110 mm
- Cable structure
- 2xAWG26/19+2xAWG22/19
- Cable type
- INTERBUS
- Cable type (abbreviation)
- 950
- Cable weight
- 41 kg/km
- Conductor cross section
- 2x 0.34 mm² (Power supply)
- 1x 0.38 mm² (Drain wire)
- 2x 0.14 mm² (Signal line)
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 58 Ω/km (Power supply)
- ≤ 150 Ω/km (Signal line)
- Conductor structure signal line
- 19x 0.10 mm
- Conductor structure, voltage supply
- 19x 0.15 mm
- Core diameter including insulation
- 0.97 mm (Signal line)
- 1.25 mm (Power supply)
- External cable diameter D
- 5.2 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- PP
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 7.5 x D
- Nominal voltage, cable
- ≤ 100 V
- Number of bending cycles
- 1000000
- Optical shield covering
- 85 %
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.75 mm
- Overall twist
- 2 pairs around a drain wire in the center to the core
- Shielding
- Tinned copper braided shield
- Test voltage Core/Core
- 1000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 1000 V (50 Hz, 1 min.)
- Thickness, insulation
- 0.24 mm (Conductor insulation, signal line)
- 0.25 mm (Conductor insulation, voltage supply)
- Traversing path
- 6 m
- Traversing rate
- 4 m/s
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Aluminum-lined polyester foil
- UL AWM style
- 20963 (80°C/30 V)
- Wave impedance
- 75 Ω ±10 Ω (Signal line)
- 55 Ω ±10 Ω (Power supply)
- Wire colors
- red-blue, green-yellow
Dimensions
- Length of cable
- 20 m
- Stripping length of the free conductor end
- 50 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Pin assignment
- Contact | Color (signal designation) | Contact (optional)
- 1 (Socket) | RD (0.34 mm²)
- 3 (Socket) | BU (0.34 mm²)
- 2 (Socket) | YE (0.14 mm²)
- 4 (Socket) | GN (0.14 mm²)
Standards and Regulations
- Flammability rating according to UL 94
- HB
