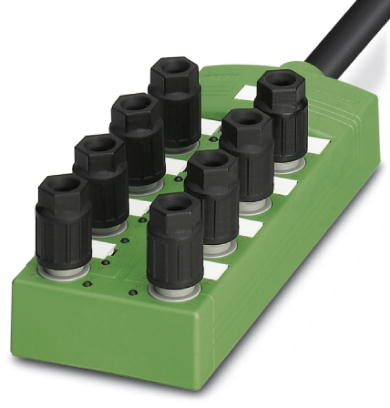

Phoenix Contact 1548574

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 80 °C
  • -5 °C - 80 °C (for flexible installation)
  • -40 °C - 90 °C (for fixed installation)
• Degree of protection
  • IP69K
  • IP65
  • IP67

Cable

• Ambient temperature (operation)
  • -40 °C - 90 °C (cable, fixed installation)
  • -5 °C - 80 °C (cable, flexible installation)
• AWG power supply
  • 18
• AWG signal line
  • 22
• Bending radius
  • 110 mm
• Cable abbreviation
  • LiYY11Y-HF
• Cable type
  • PUR/PVC black
• Cable type (abbreviation)
  • PUR
• Conductor cross section
  • 2x 0.75 mm² (Power supply)
  • 16x 0.34 mm² (Signal line)
• Conductor material
  • Bare Cu litz wires
• Conductor structure signal line
  • 42x 0.10 mm
• Conductor structure, voltage supply
  • 96x 0.10 mm
• External cable diameter D
  • 10.1 mm ±0.2 mm
• External sheath, color
  • deep black RAL 9005
• Flame resistance
  • DIN EN 50265
• Material conductor insulation
  • PVC
• Material, inner sheath
  • PVC
• Nominal voltage, cable
  • 500 V (Power supply)
  • 300 V (Signal line)
• Number of bending cycles
  • 1500000
• Other resistance
  • Highly resistant to acids, alkaline solutions and solvents
• Outer sheath, material
  • PUR
• Overall twist
  • Wires twisted in layers
• Resistance to oil
  • according to VDE 0472 Part 803
• Special properties
  • Silicone-free
• Test voltage, cable
  • 1200 V (Signal line)
  • 2000 V (Power supply)
• Traversing path
  • 2 m
• Traversing rate
  • 2 m/s
• Wire colors
  • brown, blue, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown

Conductor data

• Conductor cross section AWG max.
  • 22
• Conductor cross section AWG min.
  • 26
• Conductor cross section flexible max.
  • 0.34 mm²
• Conductor cross section flexible min.
  • 0.14 mm²
• Maximum external conductor diameter
  • 6 mm
• Minimum external conductor diameter
  • 3.5 mm
• Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
  • Class 2-6
• Tightening torque, union nut
  • 2 Nm
• Wire diameter including insulation
  • 0.7 mm - 1.3 mm
• Wire insulation material
  • PVC / PE / PP
• Wrench size, union nut
  • 13 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years

Insulation material

• Contact carrier material
  • PA 6.6
• Contact material
  • Steel/copper
• Contact surface material
  • Sn
• Housing material
  • PBT
• Material of the moulding mass
  • PUR

Local diagnostics function

• Local diagnostics
  • Supply voltage Green LED
  • Status display I/O Yellow LED

Master cable connection data

• Connection method
  • Fixed connection
• Length of cable
  • 5 m
• Tightening torque of mounting screw for fixing the housing
  • 0.5 Nm

Pin assignment

• Slot/position = Wire color or connection
  • 4 / 4 (A) = GY
  • 5 / 2 (B) = WH/YE
  • 8 / 2 (B) = GY/BN
  • 8 / 4 (A) = VT
  • 6 / 4 (A) = RD
  • 4 / 2 (B) = BN/GN
  • 1-8 / 3 (0 V) = BU
  • 7 / 2 (B) = WH/GY
  • 7 / 4 (A) = BK
  • 1 / 4 (A) = WH
  • 6 / 2 (B) = YE/BN
  • 1 / 2 (B) = GY/PK
  • 5 / 4 (A) = PK
  • 1-8 / 1 (+ 24 V) = BN
  • 2 / 2 (B) = RD/BU
  • 3 / 2 (B) = WH/GN
  • 3 / 4 (A) = YE
  • 2 / 4 (A) = GN

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0
