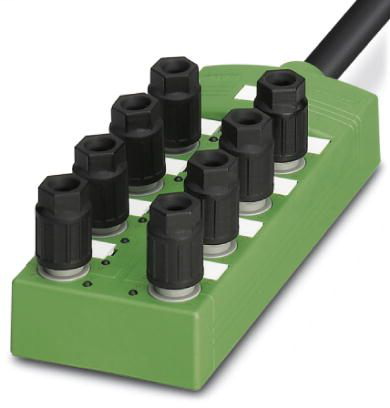

Phoenix Contact 1548545

Ambient conditions

• Ambient temperature (operation)
  • -5 °C - 80 °C (for flexible installation)
  • -40 °C - 90 °C (for fixed installation)
  • -30 °C - 80 °C
• Degree of protection
  • IP67
  • IP65
  • IP69K

Cable

• Ambient temperature (operation)
  • -30 °C - 70 °C (cable, fixed installation)
  • -5 °C - 70 °C (cable, flexible installation)
• AWG power supply
  • 18
• AWG signal line
  • 22
• Bending radius
  • 87 mm
• Cable abbreviation
  • LiYY11Y-HF
• Cable type
  • PUR/PVC black
• Cable weight
  • 112 kg/km
• Conductor cross section
  • 8x 0.34 mm² (Signal line)
  • 2x 0.75 mm² (Power supply)
• Conductor material
  • Bare Cu litz wires
• Conductor structure signal line
  • 42x 0.10 mm
• Conductor structure, voltage supply
  • 96x 0.10 mm
• Core diameter including insulation
  • 2 mm (Power supply)
  • 1.5 mm (Signal line)
• External cable diameter D
  • 8.7 mm ±0.2 mm
• External sheath, color
  • deep black RAL 9005
• Material conductor insulation
  • PVC
• Material, inner sheath
  • PVC
• Nominal voltage, cable
  • ≤ 500 V
• Number of bending cycles
  • 1500000
• Outer sheath, material
  • PUR
• Overall twist
  • Wires twisted in layers
• Smallest bending radius, fixed installation
  • 43.5 mm
• Smallest bending radius, movable installation
  • 87 mm
• Test voltage Core/Core
  • 2000 V AC (Power supply)
  • 1500 V AC (Signal line)
• Traversing path
  • 2 m
• Traversing rate
  • 2 m/s

Conductor data

• Conductor cross section AWG max.
  • 22
• Conductor cross section AWG min.
  • 26
• Conductor cross section flexible max.
  • 0.34 mm²
• Conductor cross section flexible min.
  • 0.14 mm²
• Maximum external conductor diameter
  • 6 mm
• Minimum external conductor diameter
  • 3.5 mm
• Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
  • Class 2-6
• Tightening torque, union nut
  • 2 Nm
• Wire diameter including insulation
  • 0.7 mm - 1.3 mm
• Wire insulation material
  • PVC / PE /PP
• Wrench size, union nut
  • 13 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Insulation material

• Contact carrier material
  • PA 6.6
• Contact material
  • Steel/copper
• Contact surface material
  • Sn
• Housing material
  • PBT
• Material of the moulding mass
  • PUR

Local diagnostics function

• Local diagnostics
  • Status display I/O Yellow LED
  • Supply voltage Green LED

Master cable connection data

• Connection method
  • Fixed connection
• Length of cable
  • 10 m
• Tightening torque of mounting screw for fixing the housing
  • 0.5 Nm

Pin assignment

• Slot/position = Wire color or connection
  • 1 / 2 (B) = GY/PK
  • 3 / 4 (A) = YE
  • 1-4 / 3 (0 V) = BU
  • 4 / 2 (B) = BN/GN
  • 1-4 / 1 (+ 24 V) = BN
  • 2 / 4 (A) = GN
  • 4 / 4 (A) = GY
  • 2 / 2 (B) = RD/BU
  • 1 / 4 (A) = WH
  • 3 / 2 (B) = WH/GN

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0
