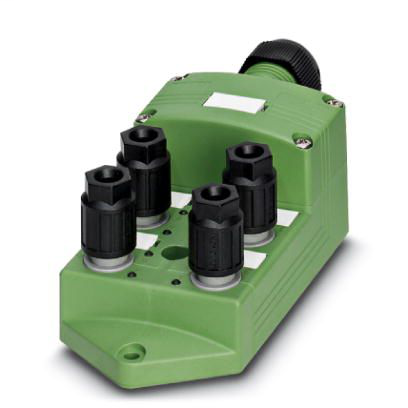

Phoenix Contact 1548325
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sensor/actuator box, application: Standard, connection method: QUICKON, 0.14 mm² ... 0.34 mm², number of slots: 4, number of positions: 3, slot assignment: single, status display: yes, pnp; master cable connection: Pluggable screw connection 180°, shielding: noSensor/actuator box 1548325
Phoenix Contact 1548325 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 80 °C
- Degree of protection
- IP65
- IP67
- IP69K
Conductor data
- Conductor cross section AWG max.
- 22
- Conductor cross section AWG min.
- 26
- Conductor cross section flexible max.
- 0.34 mm²
- Conductor cross section flexible min.
- 0.14 mm²
- Maximum external conductor diameter
- 6 mm
- Minimum external conductor diameter
- 3.5 mm
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
- Class 2-6
- Tightening torque, union nut
- 2 Nm
- Wire diameter including insulation
- 0.7 mm - 1.3 mm
- Wire insulation material
- PVC / PE /PP
- Wrench size, union nut
- 13 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Insulation material
- Contact carrier material
- PA 6.6
- Contact material
- Steel/copper
- Contact surface material
- Sn
- Housing material
- PBT
- Material of contact, master cable side
- CU alloy
- Material of contact surface, master cable side
- Gold-plated
- Material of the contact carrier on the master cable side
- PA 6.6 V0
- Material of the moulding mass
- PUR
Local diagnostics function
- Local diagnostics
- Status display I/O Yellow LED
- Supply voltage per module Green LED
Master cable data/connection data
- Conductor cross section AWG max. (energy)
- 16
- Conductor cross section AWG max. (signal)
- 16
- Conductor cross section AWG min. (energy)
- 26
- Conductor cross section AWG min. (signal)
- 26
- Conductor cross section max. (energy)
- 1.5 mm²
- Conductor cross section max. (signal)
- 1.5 mm²
- Conductor cross section min. (energy)
- 0.14 mm²
- Conductor cross section min. (signal)
- 0.14 mm²
- Connection method
- Pluggable screw connection
- External cable diameter max.
- 12 mm
- External cable diameter min.
- 7 mm
- Stripping length
- 50 mm (Master cable)
- Stripping length (signal)
- 7 mm
- Tightening torque, cover screw
- 0.35 Nm
- Tightening torque of mounting screw for fixing the housing
- 0.5 Nm
- Tightening torque, union nut
- 2.5 Nm
Pin assignment
- Slot/position = Wire color or connection
- 4 / 4 (A) = 4 / 4
- 2 / 4 (A) = 2 / 4
- 1 / 4 (A) = 1 / 4
- 1-4 / 3 (0 V) = 0 V
- 1-4 / 1 (+ 24 V) = UN
- 3 / 4 (A) = 3 / 4
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
