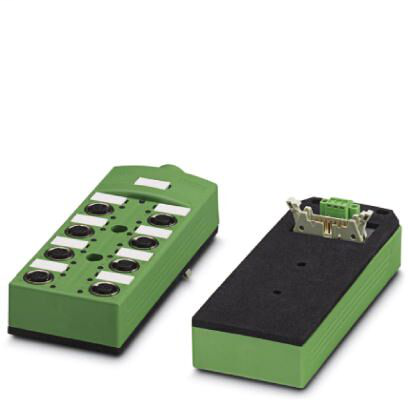

Phoenix Contact 1547928
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sensor/actuator box, application: Standard, connection method: M12-SPEEDCON-socket Metal, number of slots: 8, number of positions: 4, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: Rear FLK pin strip and MINI COMBICON 270°, shielding: noSensor/actuator box - SACB-8/8-L-PUR SCO FLK14/MCV3P - 1547928
Phoenix Contact 1547928 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 80 °C
- Ambient temperature (storage/transport)
- -30 °C - 90 °C
- Degree of protection
- IP54 (with sealed mounting holes)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Insulation material
- Contact carrier material
- PA
- Contact material
- Cu alloy
- Contact surface material
- gold-plated
- Housing material
- PBT
- Material of contact, master cable side
- CU alloy
- Material of contact surface, master cable side
- tin-plated
- Material of the contact carrier on the master cable side
- PA
- Material of the moulding mass
- PUR
- Material of threaded sleeve
- Zinc die-cast
- Material of threaded sleeve surface
- Nickel-plated
- O-ring material
- NBR
- Sealing material
- CR (flat gasket on the back)
Local diagnostics function
- Local diagnostics
- Status display I/O Yellow LED
- Supply voltage Green LED
Master cable data/connection data
- Conductor cross section AWG max. (energy)
- 16
- Conductor cross section AWG min. (energy)
- 26
- Conductor cross section max. (energy)
- 1.5 mm²
- Conductor cross section min. (energy)
- 0.14 mm²
- Connection method
- Rear FLK pin strip and MINI COMBICON
- Stripping length (signal)
- 9 mm
- Tightening torque of mounting screw for fixing the housing
- 0.5 Nm
- Tightening torque slot sensor/actuator cable
- 0.4 Nm
Pin assignment
- Slot/position = Wire color or connection
- 4 / 4 (A) = 4
- 1-8 / 1 (+ 24 V) = 11
- 5 / 4 (A) = 5
- 7 / 4 (A) = 7
- 1-8 / 1 (+ 24 V) = 13
- 1 / 4 (A) = 1
- 3 / 4 (A) = 3
- 1-8 / 1 (+ 24 V) = 9
- 8 / 4 (A) = 8
- 1-8 / 3 (0 V) = 10
- 6 / 4 (A) = 6
- 1-8 / 3 (0 V) = 12
- 1-8 / 3 (0 V) = 14
- 2 / 4 (A) = 2
Standards and Regulations
- Standards/specifications
- M12 connector IEC 61076-2-101
