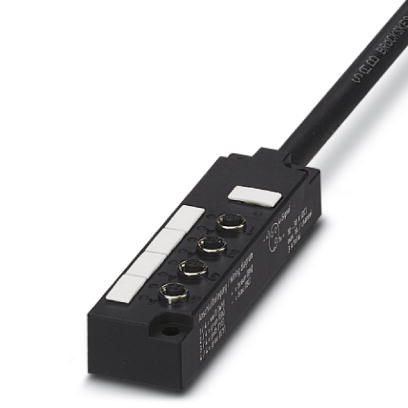

Phoenix Contact 1530676
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sensor/actuator box, application: Standard, connection method: M5 socket Metal, number of slots: 4, number of positions: 3, slot assignment: single, status display: yes, pnp; master cable connection: Fixed connection 180°, PUR/PVC, cable length: 10 m, shielding: noSensor/actuator box 1530676
Phoenix Contact 1530676 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 70 °C (cable, fixed installation)
- -5 °C - 70 °C (cable, flexible installation)
- -25 °C - 80 °C
- Degree of protection
- IP67
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 25;
- REACh SVHC
- Lead 7439-92-1
Insulation material
- Contact carrier material
- PA
- Contact material
- CuZn
- Contact surface material
- Ni/Au
- Housing material
- PA-GF
- Material of threaded sleeve
- Cu alloy
- Material of threaded sleeve surface
- Nickel-plated
Local diagnostics function
- Local diagnostics
- Status display I/O Yellow LED
- Supply voltage Green LED
Master cable data/connection data
- Cable type
- Master cable suitable for flexible cable conduit
- Connection method
- Fixed connection
- External diameter
- 6 mm
- Length of cable
- 10 m
- Max. bending cycles
- 1000000
- Power supply cross section
- 2x 0.5 mm²
- Signal line cross section
- 8x 0.25 mm²
Pin assignment
- Slot/position = Wire color or connection
- 2 / 4 (A) = GN
- 1 / 4 (A) = WH
- 4 / 4 (A) = GY
- 1-4 / 1 (+ 24 V) = BN
- 3 / 4 (A) = YE
- 1-4 / 3 (0 V) = BU
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standard designation
- M5 connector
- Standards/regulations
- IEC 61076-2-105
