Description

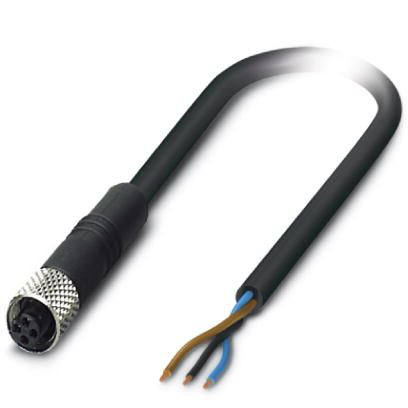

Sensor/actuator cable, 3-position, PUR, black RAL 9005, free cable end, on Socket straight M5, A-coded, cable length: 3 mSensor/actuator cable 1530430
Phoenix Contact 1530430 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 80 °C (Plug / socket)
- Degree of protection
- IP65
- IP68
- IP67
Cable
- Ambient temperature (operation)
- -15 °C - 80 °C (cable, fixed installation)
- -5 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 26
- Cable type
- PUR/PVC black
- Cable weight
- 12.9 kg/km
- Conductor cross section
- 3x 0.14 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 148 Ω/km
- Conductor structure signal line
- 18x 0.10 mm
- Core diameter including insulation
- 1.1 mm
- External cable diameter D
- 3 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Insulation resistance
- 100 MΩ*km
- Material conductor insulation
- PVC
- Nominal voltage, cable
- 250 V
- Outer sheath, material
- PUR
- Overall twist
- 3 wires, twisted
- Smallest bending radius, fixed installation
- 8 mm
- Smallest bending radius, movable installation
- 15 mm
- Test voltage, cable
- 800 Vrms
- Wire colors
- brown, blue, black
Dimensions
- Length of cable
- 3 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 25;
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PUR
- Contact material
- CuSn
- Contact surface material
- Au
- Material, knurls
- Nickel-plated brass
- Material of grip body
- PUR
- Sealing material
- NBR
Standards and Regulations
- Standard designation
- M5 connector
- Standards/regulations
- IEC 61076-2-105
