Description

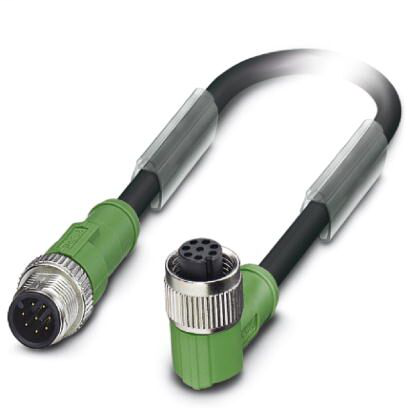

Sensor/actuator cable, 8-position, Variable cable type, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: Free input (0.2 ... 40.0 m)Sensor/actuator cable - SAC-8P-M12MS-M12FR/.../... - 1522765
Phoenix Contact 1522765 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (connector)
- Degree of protection
- IP68
- IP65
- IP67
Dimensions
- Length of cable
- Free input (0.2 - 40.0 m)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Gray, highly flexible PUR [800]
- Acceleration
- 30 m/s²
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Bending radius
- 50 mm
- Cable abbreviation
- LiF9Y11Y
- Cable type
- Gray, highly flexible PUR
- Cable type (abbreviation)
- 800
- Cable weight
- 49.1 kg/km
- Conductor cross section
- 8x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.2 mm ±0.05 mm (Signal line)
- External cable diameter D
- 6 mm ±0.2 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- in accordance with UL 758/1581 FT2
- Halogen-free
- The cable is halogen-free
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- PP
- Material, filler
- PE
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 5 x D
- Nominal voltage, cable
- 300 V
- Note
- Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
- Number of bending cycles
- 15000000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- 8 wires around filler to the core
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Cable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing
- Free from silicone and cadmium
- Test voltage, cable
- 2000 V
- Torsion force
- ± 360 °/m
- Traversing path
- 0.9 m
- Traversing rate
- 5 m/s
- UL AWM style
- 20549
- Wire colors
- white, brown, green, yellow, gray, pink, blue, red
Line characteristics
- Note
- This item is a sensor/actuator cable with a freely selectable cable type. The technical data for all possible cable types is listed in the table below.
Material
- Contact carrier material
- TPU GF
- Contact material
- CuZn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
PUR halogen-free black [PUR]
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Bending radius
- 59 mm
- Cable abbreviation
- Li9Y11Y
- Cable capacity
- ≤ 70 pF/m
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUR
- Cable weight
- 46 kg/km
- Conductor cross section
- 8x 0.25 mm²
- Conductor inductance
- approx. 0.6 mH/km (with 1 MHz)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 78 Ω/km
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.17 mm ±0.02 mm
- External cable diameter D
- 5.9 mm ±0.15 mm
- External sheath, color
- black-gray RAL 7021
- Flame resistance
- in accordance with DIN UL-Style 20549
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Material conductor insulation
- PP
- Material, filler
- PE
- Minimum bending radius, fixed installation
- 8 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 4000000
- Other resistance
- abrasion-resistant
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Highly resistant to acids, alkaline solutions and solvents
- Low adhesion
- hydrolysis and microbe resistant
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.8 mm
- Overall twist
- 8 wires around filler to the core
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Flexible cable conduit capable
- Silicone-free
- flexible
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.21 mm
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 / 10493 (80°C/300 V)
- Wave impedance
- 100 Ω +15 % (with 1 MHz)
- Wire colors
- white, brown, green, yellow, gray, pink, blue, red
PUR/PVC gray [100]
- AWG signal line
- 24
- Bending radius
- 59 mm
- Cable abbreviation
- LiYY-11Y
- Cable type
- PUR/PVC gray
- Cable type (abbreviation)
- 100
- Cable weight
- 50 kg/km
- Conductor cross section
- 0.25 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 78 Ω/km
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.2 mm ±0.05 mm
- External cable diameter
- 5.90 mm
- External sheath, color
- gray RAL 7001
- Insulation resistance
- ≥ 100 MΩ*km
- Material conductor insulation
- PVC
- Material, filler
- PVC
- Material, inner sheath
- PVC
- Nominal voltage, cable
- 300 V
- Number of bending cycles
- 2000000
- Outer sheath, material
- PUR
- Overall twist
- 8 wires around filler to the core
- Smallest bending radius, fixed installation
- 59 mm
- Smallest bending radius, movable installation
- 59 mm
- Test voltage, cable
- 3000 V
- Thickness, insulation
- ≥ 0.23 mm (Core insulation)
- ≥ 0.38 mm (Outer cable sheath)
- Traversing path
- 5 m
- Traversing rate
- 3 m/s
- Wire colors
- Brown, white, green, yellow, gray, pink, blue, red
PVC black [PVC]
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 24
- Cable abbreviation
- LiYY
- Cable type
- PVC black
- Cable type (abbreviation)
- PVC
- Cable weight
- 54 kg/km
- Conductor cross section
- 8x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.19 mm ±0.02 mm
- External cable diameter D
- 5.9 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- According to UL 758/1581 (Cable Flame)
- according to UL 758/1581 FT1
- Insulation resistance
- ≥ 200 MΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Minimum bending radius, drag chain applications
- 15 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V AC
- Outer sheath, material
- PVC
- Outer sheath thickness
- ≥ 0.76 mm
- Overall twist
- 8 wires around filler to the core
- Resistance to oil
- According to DIN EN 60811-2-1, 168 h at 80°C
- Special properties
- flexible
- Test voltage, cable
- ≥ 3000 V AC (Spark test)
- Thickness, insulation
- ≥ 0.23 mm
- UL AWM style
- 2464 / 1729 (80°C/300 V)
- Wire colors
- white, brown, green, yellow, gray, pink, blue, red
PVC gray [500]
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 24
- Cable type
- PVC gray
- Cable type (abbreviation)
- 500
- Cable weight
- 54 kg/km
- Conductor cross section
- 8x 0.25 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.19 mm ±0.02 mm
- External cable diameter D
- 5.9 mm ±0.2 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- according to UL 758/1581 FT1
- According to UL 758/1581 (Cable Flame)
- Insulation resistance
- ≥ 200 MΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V AC
- Outer sheath, material
- PVC
- Outer sheath thickness
- ≥ 0.76 mm
- Overall twist
- 8 wires around filler to the core
- Resistance to oil
- According to DIN EN 60811-2-1, 168 h at 80°C
- Test voltage, cable
- ≥ 3000 V AC
- Thickness, insulation
- ≥ 0.23 mm
- UL AWM style
- 2464 / 1729 (80°C/300 V)
- Wire colors
- white, brown, green, yellow, gray, pink, blue, red
Standards and Regulations
- Flammability rating according to UL 94
- HB
- Standards/specifications
- M12 connector IEC 61076-2-101
