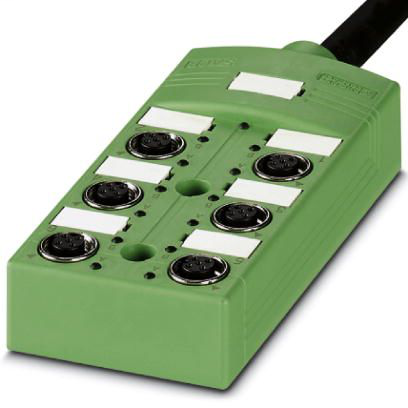

Phoenix Contact 1517291

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 90 °C (for fixed installation)
  • -5 °C - 80 °C (for flexible installation)
  • -30 °C - 90 °C
• Degree of protection
  • IP67
  • IP65
  • IP69K

Cable

• Ambient temperature (operation)
  • -5 °C - 80 °C (cable, flexible installation)
  • -40 °C - 90 °C (cable, fixed installation)
• AWG power supply
  • 17
• AWG signal line
  • 20
• Cable abbreviation
  • Li9Y11Y-HF
• Conductor cross section
  • 3x 0.5 mm² (Power)
  • 12x 0.5 mm² (Signal)
• Conductor material
  • Bare Cu litz wires
• Conductor structure signal line
  • 64x 0.10 mm
• Conductor structure, voltage supply
  • 128x 0.10 mm
• External cable diameter D
  • 10.4 mm ±0,3 mm
• External sheath, color
  • black RAL 9005
• Minimum bending radius, drag chain applications
  • 10 x D
• Nominal voltage, cable
  • 300 V
• Number of bending cycles
  • 2000000
• Outer sheath, material
  • PUR
• Overall twist
  • Wires twisted in layers
• Test voltage, cable
  • 2000 V
• Traversing path
  • 2 m
• Traversing rate
  • 2 m/s

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
  • Environmentally Friendly Use Period = 50

Insulation material

• Contact carrier material
  • PA
• Contact material
  • Cu alloy
• Contact surface material
  • gold-plated
• Housing material
  • PBT
• Material of the moulding mass
  • PUR
• Material of threaded sleeve
  • Zinc die-cast
• Material of threaded sleeve surface
  • Nickel-plated
• O-ring material
  • NBR

Local diagnostics function

• Local diagnostics
  • Status display I/O Yellow LED
  • Supply voltage Green LED

Master cable connection data

• Connection method
  • Fixed connection
• Length of cable
  • 10 m
• Tightening torque of mounting screw for fixing the housing
  • 0.5 Nm
• Tightening torque slot sensor/actuator cable
  • 0.4 Nm

Pin assignment

• Slot/position = Wire color or connection
  • 1 / 2 (B) = GY/PK
  • 3 / 2 (B) = WH/GN
  • 2 / 2 (B) = RD/BU
  • 6 / 4 (A) = RD
  • 4 / 4 (A) = GY
  • 6 / 2 (B) = YE/BN
  • 5 / 4 (A) = PK
  • 2 / 4 (A) = GN
  • 5 / 2 (B) = WH/YE
  • 1-6 / 3 (0 V) = BU
  • 1-6 / 1 (+ 24 V) = BN
  • 3 / 4 (A) = YE
  • 1 / 4 (A) = WH
  • 4 / 2 (B) = BN/GN
  • 1-6 / 5 (PE) = GN/YE

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0
• Standard designation
  • M12 connector
• Standards/regulations
  • IEC 61076-2-101
