Description

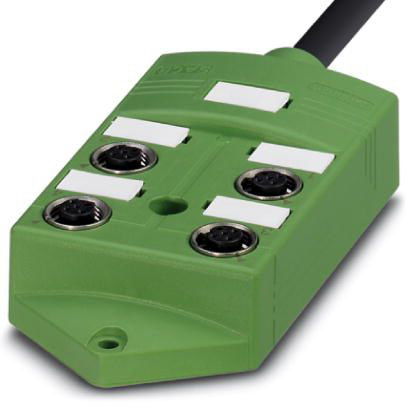

Sensor/actuator box, application: Standard, connection method: M12-SPEEDCON-socket Metal, number of slots: 4, number of positions: 5, coding: A - standard, slot assignment: Double, status display: No, Universal; master cable connection: Fixed connection 180°, PUR halogen free, cable length: 10 m, shielding: noSensor/actuator box 1517217
Phoenix Contact 1517217 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 90 °C
- -40 °C - 90 °C (for fixed installation)
- -5 °C - 80 °C (for flexible installation)
- Degree of protection
- IP69K
- IP65
- IP67
Cable
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -40 °C - 90 °C (cable, fixed installation)
- AWG power supply
- 17
- AWG signal line
- 20
- Bending radius
- 94 mm
- Cable abbreviation
- Li9Y11Y-HF
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUR
- Conductor cross section
- 8x 0.5 mm² (Signal line)
- 3x 1 mm² (power line)
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 64x 0.10 mm
- Conductor structure, voltage supply
- 128x 0.10 mm
- External cable diameter D
- 9.4 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- DIN EN 50265
- Material conductor insulation
- PP
- Nominal voltage, cable
- 300 V
- Number of bending cycles
- 1500000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- Wires twisted in layers
- Resistance to oil
- according to VDE 0472 Part 803
- Smallest bending radius, fixed installation
- 94 mm
- Smallest bending radius, movable installation
- 94 mm
- Special properties
- Silicone-free
- Test voltage, cable
- 2000 V
- Traversing path
- 2 m
- Traversing rate
- 2 m/s
- Wire colors
- brown, blue, green/yellow, white, green, yellow, gray, gray/pink, red/blue, white/green, brown/green
Insulation material
- Contact carrier material
- PA
- Contact material
- Cu alloy
- Contact surface material
- gold-plated
- Housing material
- PBT
- Material of the moulding mass
- PUR
- Material of threaded sleeve
- Zinc die-cast
- Material of threaded sleeve surface
- Nickel-plated
- O-ring material
- NBR
Master cable connection data
- Connection method
- Fixed connection
- Length of cable
- 10 m
- Tightening torque of mounting screw for fixing the housing
- 0.5 Nm
- Tightening torque slot sensor/actuator cable
- 0.4 Nm
Pin assignment
- Slot/position = Wire color or connection
- 2 / 2 (B) = RD/BU
- 1-4 / 3 (0 V) = BU
- 3 / 4 (A) = YE
- 3 / 2 (B) = WH/GN
- 1-4 / 5 (PE) = GN/YE
- 1 / 4 (A) = WH
- 2 / 4 (A) = GN
- 4 / 4 (A) = GY
- 1-4 / 1 (+ 120 V) = BN
- 4 / 2 (B) = BN/GN
- 1 / 2 (B) = GY/PK
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
- Standard designation
- M12 connector
- Standards/regulations
- IEC 61076-2-101
