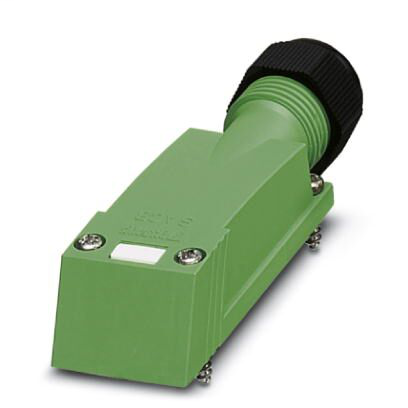

Phoenix Contact 1516412

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 80 °C
• Degree of protection
  • IP65
  • IP67

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Insulation material

• Housing material
  • PBT
• Material of contact, master cable side
  • CU alloy
• Material of contact surface, master cable side
  • Gold-plated
• Material of the contact carrier on the master cable side
  • PA

Master cable data/connection data

• Conductor cross section AWG max. (energy)
  • 16
• Conductor cross section AWG max. (signal)
  • 16
• Conductor cross section AWG min. (energy)
  • 26
• Conductor cross section AWG min. (signal)
  • 26
• Conductor cross section max. (energy)
  • 1.5 mm²
• Conductor cross section max. (signal)
  • 1.5 mm²
• Conductor cross section min. (energy)
  • 0.14 mm²
• Conductor cross section min. (signal)
  • 0.14 mm²
• Connection method
  • Pluggable screw connection
• External cable diameter max.
  • 12 mm
• External cable diameter min.
  • 7 mm
• Stripping length
  • 60 mm (Master cable)
• Stripping length (signal)
  • 7 mm
• Tightening torque, cover screw
  • 1 Nm
• Tightening torque, union nut
  • 2.5 Nm

Pin assignment

• Slot/position = Wire color or connection
  • 1 / 4 (A) = 1 / 4
  • 5 / 4 (A) = 5 / 4
  • 3 / 4 (A) = 3 / 4
  • 10 / 4 (A) = 10 / 4
  • 4 / 4 (A) = 4 / 4
  • 1-10 / 3 (0 V) = 0 V
  • 8 / 4 (A) = 8 / 4
  • 1-10 / 1 (+24 V) = UN
  • 9 / 4 (A) = 9 / 4
  • 2 / 4 (A) = 2 / 4
  • 6 / 4 (A) = 6 / 4
  • 7 / 4 (A) = 7 / 4

Standards and Regulations

• Connection in acc. with standard
  • CUL
