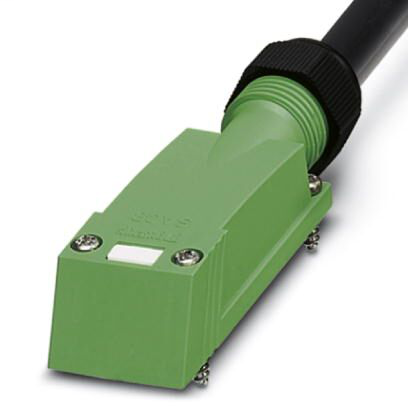

Phoenix Contact 1516328
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connector hood, application: Sensor/actuator box, connection method: M8 socket Metal, number of slots: 6, coding: A - standard, slot assignment: single, status display: No; master cable connection: Pluggable screw connection 180°, PUR/PVC, cable length: 10 m, shielding: noConnector hood - SACB-C-H180- 6/3-10,0PUR-M8 - 1516328
Phoenix Contact 1516328 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -5 °C - 80 °C (for flexible installation)
- -30 °C - 80 °C
- -40 °C - 90 °C (for fixed installation)
- Degree of protection
- IP67
- IP65
Cable
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -40 °C - 90 °C (cable, fixed installation)
- AWG power supply
- 18
- AWG signal line
- 22
- Bending radius
- 76 mm
- Cable abbreviation
- LiYY11Y-HF
- Cable type
- PUR/PVC black
- Cable type (abbreviation)
- PUR
- Cable weight
- 81.2 kg/km
- Conductor cross section
- 6x 0.34 mm² (Signal line)
- 2x 0.75 mm² (power line)
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 19x 0.15 mm
- Conductor structure, voltage supply
- 42x 0.15 mm
- Core diameter including insulation
- 1.3 mm ±0.1 mm (Signal line)
- 1.8 mm ±0.1 mm (power line)
- External cable diameter D
- 7.6 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- DIN EN 50265
- Inner sheath thickness
- ≥ 0.15 mm
- Material conductor insulation
- PVC
- Material, inner sheath
- PVC
- Minimum bending radius, fixed installation
- 7.5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- 300 V
- Number of bending cycles
- 1500000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Outer sheath thickness
- ≥ 0.38 mm
- Overall twist
- Wires twisted in layers
- Resistance to oil
- according to VDE 0472 Part 803
- Special properties
- Silicone-free
- Test voltage, cable
- 2000 V
- Traversing path
- 2 m
- Traversing rate
- 2 m/s
- UL AWM style
- 20549
- Wire colors
- brown, blue, white, green, yellow, gray, pink, red
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Insulation material
- Housing material
- PBT
- Material of contact, master cable side
- CU alloy
- Material of contact surface, master cable side
- Gold-plated
- Material of the contact carrier on the master cable side
- PA
Master cable connection data
- Connection method
- Pluggable screw connection
- Length of cable
- 10 m
Pin assignment
- Slot/position = Wire color or connection
- 6 / 4 (A) = RD
- 5 / 4 (A) = PK
- 3 / 4 (A) = YE
- 2 / 4 (A) = GN
- 1 / 4 (A) = WH
- 4 / 4 (A) = GY
- 1-6 / 3 (0 V) = BU
- 1-6 / 1 (+ 24 V) = BN
Standards and Regulations
- Connection in acc. with standard
- CUL
