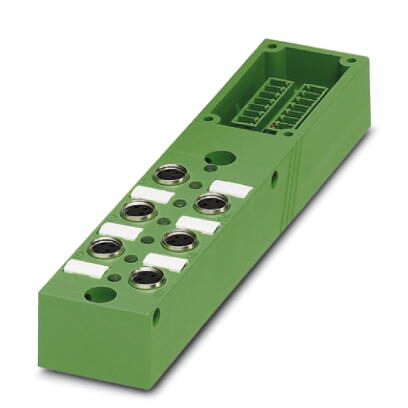

Phoenix Contact 1516263
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sensor/actuator box header, application: Standard, connection method: M8 socket Metal, number of slots: 6, number of positions: 3, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: Pluggable screw connection, shielding: noSensor/actuator box header - SACB- 6/3-L-C-M8 GG - 1516263
Phoenix Contact 1516263 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 80 °C
- Degree of protection
- IP67
- IP65
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Insulation material
- Contact carrier material
- PA
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Housing material
- PBT
- Material of contact, master cable side
- CU alloy
- Material of contact surface, master cable side
- Gold-plated
- Material of the contact carrier on the master cable side
- PA 6.6 V0
- Material of the moulding mass
- PUR
- Material of threaded sleeve
- Cu alloy
- Material of threaded sleeve surface
- Nickel-plated
- O-ring material
- NBR
Local diagnostics function
- Local diagnostics
- Supply voltage Green LED
- Status display I/O Yellow LED
Master cable data/connection data
- Connection method
- Pluggable screw connection
- Tightening torque slot sensor/actuator cable
- 0.2 Nm
Pin assignment
- Slot/position = Wire color or connection
- 2 / 4 (A) = 2 / 4
- 1 / 4 (A) = 1 / 4
- 5 / 4 (A) = 5 / 4
- 1-6 / 1 (+ 24 V) = UN
- 4 / 4 (A) = 4 / 4
- 6 / 4 (A) = 6 / 4
- 1-6 / 3 (0 V) = 0 V
- 3 / 4 (A) = 3 / 4
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
- Standards/specifications
- M8 connector IEC 61076-2-104
