Phoenix Contact 1459511
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

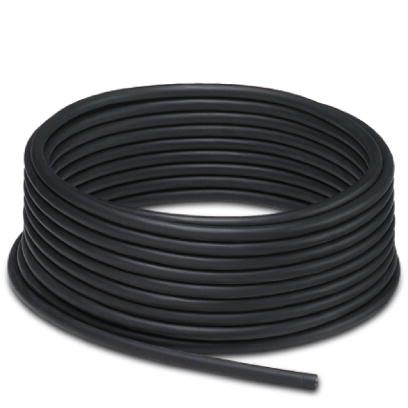

Cable ring, black PE-X, 1-pos., cable length: 100 mCable reel 1459511
Phoenix Contact 1459511 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable
- Ambient temperature (operation)
- 200 °C (permissible short-circuit temperature - maximum of 5 s)
- -40 °C - 90 °C
- 120 °C (maximum permissible temperature at the conductor)
- AWG power supply
- 12
- Cable abbreviation
- Li2X-2X
- Cable type
- PV1-F cables
- Cable type (abbreviation)
- S02
- Cable weight
- 58 kg/km
- Conductor resistance
- 5 Ω/km (at 20 °C)
- Conductor structure, voltage supply
- 56x 0.30 mm
- External cable diameter D
- 5.2 mm ±0.2 mm
- External sheath, color
- black-gray RAL 7021
- Material, inner sheath
- PE-X
- Outer sheath, material
- PE-X
- Smallest bending radius, fixed installation
- 20 mm
- Smallest bending radius, movable installation
- 40 mm
- Thickness, insulation
- ≥ 0.5 mm (Outer cable sheath)
- ≥ 0.5 mm (Inner sheath)
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Standards and Regulations
- Flame resistance
- IEC 60332-1-2
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Other resistance
- Resistant to ozone
- Resistance to acids and alkalis
- Resistant to salt water
