Phoenix Contact 1446362
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

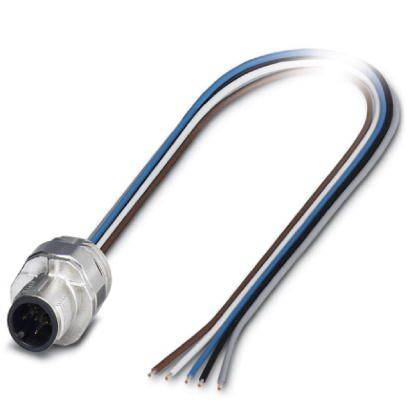

Sensor/actuator flush-type plug, 5-pos., M12 SPEEDCON, A-coded, front/screw mounting with M16 thread, can be positioned, with 2.0 m TPE litz wire, 5 x 0.34 mm²Flush-type connector - SACC-EC-MS-5CON-M16/2,0 SCO - 1446362
Phoenix Contact 1446362 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP67
Cable
- AWG signal line
- 22
- Cable type
- TPE litz wire
- Conductor cross section
- 0.34 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 57.6 mΩ/m
- Conductor structure signal line
- 7x 0.25 mm
- Core diameter including insulation
- 1.2 mm ±0.07 mm
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- TPE
- Nominal voltage, cable
- 300 V
- Standards/specifications
- M12 connector IEC 61076-2-101
- Test voltage, cable
- 2000 V AC
- Thickness, insulation
- 0.21 mm
- Wire colors
- Black, brown,blue, white, gray
Dimensions
- Length of cable
- 2 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standards/specifications
- M12 connector IEC 61076-2-101
