Description

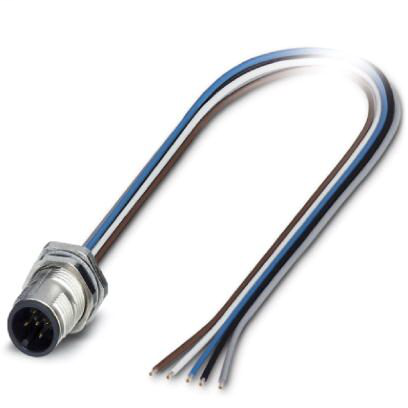

M12 flush-type connector, pin, 5-pos., A-coded, with 0.61 m wire length, M12 SPEEDCONPanel feed-through - SACC-DSI-MS-5P-M12/0,5 PVSQ0,6 - 1444911
Phoenix Contact 1444911 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C (Plug / socket)
- -40 °C - 85 °C (without mechanical actuation)
- Degree of protection
- IP67 (When plugged in)
- IP65 (When plugged in)
Cable
- Ambient temperature (operation)
- -30 °C - 70 °C (cable, fixed installation)
- AWG signal line
- 20
- Cable type
- PVC litz wire
- Conductor cross section
- 0.5 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 37.1 mΩ/m
- Conductor structure signal line
- 16x 0.20 mm
- Core diameter including insulation
- 1.8 mm
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- PVC
- Nominal voltage, cable
- 900 V
- Standards/specifications
- M12 connector IEC 61076-2-101
- Test voltage, cable
- 2500 V
- Wire colors
- Black, brown,blue, white, gray
Dimensions
- Length of cable
- 0.5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standards/specifications
- M12 connector IEC 61076-2-101
