Description

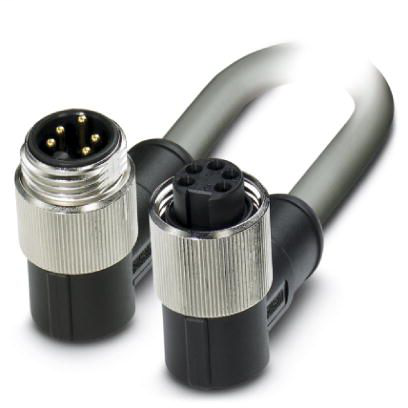

Power cable, 5-position, PUR, gray RAL 7001, Plug angled 7/8"-16UNF, on Socket angled 7/8"-16UNF, cable length: 1.5 m, 1.5 mm² conductor cross section, For power supplyPower cable 1443886
Phoenix Contact 1443886 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 90 °C (Plug / socket)
- Degree of protection
- IP65
- IP68
- IP67
Cable
- Ambient temperature (operation)
- -40 °C - 90 °C (cable, fixed installation)
- 5 °C - 90 °C (cable, flexible installation)
- AWG signal line
- 16
- Cable type
- PUR/PVC gray
- Cable type (abbreviation)
- 440
- Cable weight
- 140 kg/km
- Conductor cross section
- 5x 1.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 13.3 Ω/km
- Conductor structure, voltage supply
- 30x 0.25 mm
- External cable diameter D
- 9.7 mm ±0.2 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- According to CSA FT1
- according to EN 60332-1-2
- in acc. to UL VW1
- Material conductor insulation
- PVC
- Minimum bending radius, fixed installation
- 7.5 x D
- Minimum bending radius, flexible installation
- 15 x D
- Nominal voltage, cable
- 500 V AC
- Outer sheath, material
- PUR
- Overall twist
- 5 cores, twisted
- Resistance to oil
- according to VDE 0282 Part 10
- According to HD 22.10
- Test voltage, cable
- 4000 V AC
- UL AWM style
- 20234 (80 °C / 600 V)
- Wire colors
- Black 1, black 2, black 3, black 4, green/yellow
Dimensions
- Length of cable
- 1.5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- AU
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU
Standards and Regulations
- Flame resistance
- IEC 60332-1-2
- in acc. to UL VW1
- Flammability rating according to UL 94
- HB
