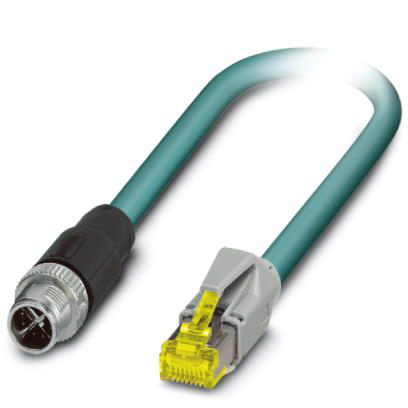

Phoenix Contact 1440630

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 60 °C
• Degree of protection
  • IP20 (RJ45 connector)
  • IP67 (M12 connector)
  • IP65 (M12 connector)

Cable

• Ambient temperature (installation)
  • -20 °C - 80 °C
• Ambient temperature (operation)
  • -40 °C - 80 °C (cable, fixed installation)
  • -20 °C - 80 °C (cable, flexible installation)
• Ambient temperature (storage/transport)
  • -20 °C - 80 °C
• Attenuation
  • 15.8 dB (at 31.25 МHz)
  • 5.7 dB (at 4 МHz)
  • 41.4 dB (at 200 MHz)
  • 11.2 dB (at 16 MHz)
  • 46.6 dB (at 250 MHz)
  • 51.4 dB (at 300 MHz)
  • 8.9 dB (at 10 MHz)
  • 8 dB (at 8 МHz)
  • 14.1 dB (at 25 MHz)
  • 12.6 dB (at 20 МHz)
  • 67.9 dB (at 500 MHz)
  • 28.7 dB (at 100 MHz)
  • 22.5 dB (at 62.5 МHz)
  • 3.1 dB (with 1 MHz)
  • 60.1 dB (at 400 MHz)
• AWG signal line
  • 26
• Cable capacity
  • 47 nF/km
• Cable structure
  • 4x2xAWG26/7; S/FTP
• Cable type
  • Ethernet 10 Gbit
• Cable type (abbreviation)
  • 94F
• Cable weight
  • 42 kg/km
• Conductor cross section
  • 4x 2x 0.14 mm²
• Conductor material
  • Bare Cu litz wires
• Conductor structure signal line
  • 7x 0.16 mm
• Core diameter including insulation
  • 1.04 mm
• External cable diameter D
  • 6.4 mm ±0.2 mm
• External sheath, color
  • water blue RAL 5021
• Flame resistance
  • according to IEC 60332-1-2
• Halogen-free
  • according to IEC 60754-1
• Insulation resistance
  • ≥ 500 MΩ*km
• Loop resistance
  • ≤ 290.00 Ω/km
• Material conductor insulation
  • Foamed PE
• Minimum bending radius, fixed installation
  • 4 x D
• Minimum bending radius, flexible installation
  • 8 x D
• Near end crosstalk attenuation (NEXT)
  • 60.3 dB (at 10 MHz)
  • 39.3 dB (at 250 MHz)
  • 34.8 dB (at 500 MHz)
  • 61.8 dB (at 8 МHz)
  • 45.3 dB (at 100 MHz)
  • 57.2 dB (at 16 MHz)
  • 40.8 dB (at 200 MHz)
  • 38.1 dB (at 300 MHz)
  • 48.4 dB (at 62.5 МHz)
  • 54.3 dB (at 25 MHz)
  • 52.8 dB (at 31.25 МHz)
  • 75.3 dB (with 1 MHz)
  • 36.3 dB (at 400 MHz)
  • 66.3 dB (at 4 МHz)
  • 55.8 dB (at 20 МHz)
• Nominal voltage, cable
  • ≤ 100 V
• Optical shield covering
  • 70 %
• Outer sheath, material
  • PUR
• Outer sheath thickness
  • 0.65 mm
• Overall twist
  • 4 pairs for core
• Power-summated near end crosstalk attenuation (PSNEXT)
  • 49.9 dB (at 31.25 МHz)
  • 36.3 dB (at 250 MHz)
  • 31.8 dB (at 500 MHz)
  • 52.8 dB (at 20 МHz)
  • 54.2 dB (at 16 MHz)
  • 58.8 dB (at 8 МHz)
  • 57.3 dB (at 10 MHz)
  • 51.3 dB (at 25 MHz)
  • 35.1 dB (at 300 MHz)
  • 63.3 dB (at 4 МHz)
  • 45.4 dB (at 62.5 МHz)
  • 72.3 dB (with 1 MHz)
  • 37.8 dB (at 200 MHz)
  • 42.3 dB (at 100 MHz)
  • 33.3 dB (at 400 MHz)
• Resistance to oil
  • in accordance with DIN EN 60811-2-1
• Return loss (RL)
  • 24.2 dB (at 25 MHz)
  • 23.3 dB (at 31.25 МHz)
  • 15.6 dB (at 400 MHz)
  • 25 dB (at 10 MHz)
  • 20.7 dB (at 62.5 МHz)
  • 16.4 dB (at 200 MHz)
  • 15.6 dB (at 500 MHz)
  • 24.5 dB (at 8 МHz)
  • 23 dB (at 4 МHz)
  • 19 dB (at 100 MHz)
  • 25 dB (at 16 MHz)
  • 25 dB (at 20 МHz)
  • 15.6 dB (at 250 MHz)
  • 20 dB (with 1 MHz)
  • 15.6 dB (at 300 MHz)
• Shield attenuation
  • ≥ 80 dB (at 30 - 100 MHz)
• Shielding
  • Tinned copper braided shield
• Signal runtime
  • 5.13 ns/m
• Signal type/category
  • Ethernet CAT6A, 10 Gbps
• Tensile strength GRP
  • ≤ 100 N
• Test voltage Core/Core
  • 700 V (50 Hz, 1 min.)
• Test voltage Core/Shield
  • 700 V (50 Hz, 1 min.)
• Twisted pairs
  • 2 cores to the pair
• Type of pair shielding
  • Aluminum-lined foil
• UL AWM style
  • 20963 (80°C/30 V)
• Wave impedance
  • 100 Ω ±5 Ω (at 100 MHz)
• Wire colors
  • white/blue-blue, white/orange-orange, white/green-green, white/brown-brown

Characteristics head 1

• Coding
  • X (Data)
• Color
  • black
• Head type
  • Plug straight M12 SPEEDCON / IP65
• No. of positions (pin connector pattern)
  • 8 (8)
• Shielded
  • yes

Characteristics head 2

• Color
  • gray
• Head type
  • Plug straight RJ45 / IP20
• No. of positions (pin connector pattern)
  • 8 (8)
• Shielded
  • yes

Dimensions

• Length of cable
  • 10 m

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
• REACh SVHC
  • Lead 7439-92-1

General data

• Alternative short product description
  • Ethernet cable
• Degree of pollution
  • 1
• Number of positions
  • 8
• Overvoltage category
  • I
• Rated current at 40°C
  • 0.5 A
• Rated voltage
  • 60 V DC
  • 48 V AC
• Signal type/category
  • Ethernet CAT6A, 10 Gbps
