Description

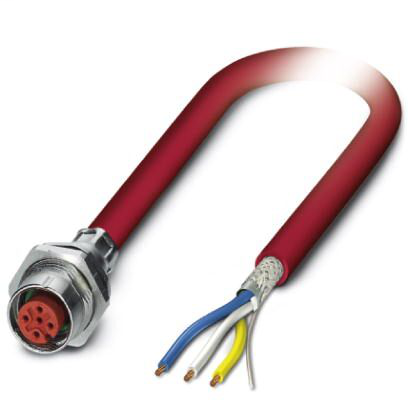

Bus system flush-type socket, CC-Link, 4-pos., M12, SPEEDCON, shielded, rear/screw mounting with Pg9 thread, with 1.0 m bus cableBus system flush-type socket - SACCBP-FS-4CON-PG9/1,0-990SCO - 1437850
Phoenix Contact 1437850 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (without mechanical actuation)
- -25 °C - 85 °C (Plug / socket)
- Degree of protection
- IP67 (When plugged in)
- IP65 (When plugged in)
Cable
- Ambient temperature (operation)
- -5 °C - 60 °C (cable, flexible installation)
- -30 °C - 60 °C (cable, fixed installation)
- AWG signal line
- 20
- Cable structure
- 3xAWG20/7 + 1xAWG22/19 (filler litz wire)
- Cable type
- CC-Link
- Cable type (abbreviation)
- 990
- Cable weight
- 78.8 kg/km
- Conductor cross section
- 0.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 31.2 Ω/km
- Conductor structure signal line
- 7x 0.28 mm
- External cable diameter D
- 7.7 mm
- External sheath, color
- red
- Material conductor insulation
- foamed PE, with high density
- Nominal voltage, cable
- 300 V
- Optical shield covering
- 78 %
- Outer sheath, material
- PVC
- Shielding
- Plastic-coated aluminum foil, tinned copper braided shield
- Signal type/category
- CC link, 10 Mbps
- Smallest bending radius, fixed installation
- 77 mm
- Thickness, insulation
- 0.89 mm (Outer cable sheath)
- Wave impedance
- 110 Ω
- Wire colors
- white, yellow, blue
- Working capacitance
- 61 pF
Dimensions
- Length of cable
- 1 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- V0
- Sealing material
- FKM
Standards and Regulations
- Flammability rating according to UL 94
- V0
