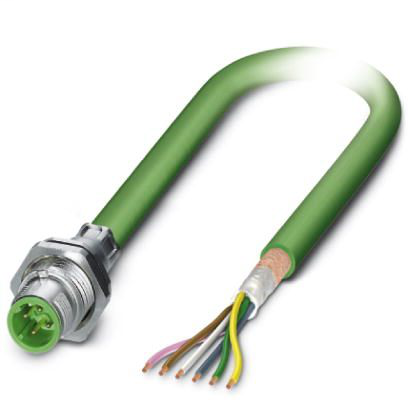

Phoenix Contact 1437672
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bus system flush-type plug, INTERBUS, 5-pos., M12, shielded, B-coded, SPEEDCON, rear/screw mounting with Pg9 thread, with 5.0 m bus cable, 3 x 2 x 0.25 mm²Bus system flush-type plug 1437672
Phoenix Contact 1437672 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C (Plug / socket)
- Degree of protection
- IP67
Cable
- Acceleration
- 3.2 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -30 °C - 70 °C (cable, flexible installation)
- Attenuation
- ≤ 27 dB/km (with 1 MHz)
- ≤ 52 dB/km (at 4 МHz)
- ≤ 119 dB/km (at 20 МHz)
- ≤ 24 dB/km (at 772 kHz)
- ≤ 112 dB/km (at 16 MHz)
- ≤ 84 dB/km (at 10 MHz)
- ≤ 15 dB/km (at 256 kHz)
- AWG signal line
- 24
- Bending radius
- 120 mm
- Cable capacity
- ≤ 60 nF/km (At 800 Hz)
- Cable structure
- 3 x 2 x 0.22 mm²
- Cable type
- INTERBUS
- Cable type (abbreviation)
- 900
- Cable weight
- 70 kg/km
- Conductor cross section
- 3x 2x 0.22 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 32x 0.10 mm
- Coupling resistance
- < 250.00 mΩ/m (at 30 MHz)
- External cable diameter D
- 8 mm
- External sheath, color
- may green RAL 6017
- Flame resistance
- according to VDE 0472, Part 4, test type B
- according to IEC 60332-1
- Insulation resistance
- ≥ 5 GΩ*km
- Loop resistance
- ≤ 159.80 Ω/km
- Material conductor insulation
- PE
- Minimum bending radius, fixed installation
- 7.5 x D
- Minimum bending radius, flexible installation
- 15 x D
- Near end crosstalk attenuation (NEXT)
- ≥ 50 dB (at 4 МHz)
- ≥ 41 dB (at 16 MHz)
- ≥ 40 dB (at 20 МHz)
- ≥ 55 dB (at 2 МHz)
- ≥ 46 dB (at 8 МHz)
- ≥ 59 dB (with 1 MHz)
- ≥ 44 dB (at 10 MHz)
- ≥ 61 dB (at 772 kHz)
- Nominal voltage, cable
- 250 V (Peak value, not for high-power applications)
- Number of bending cycles
- 5000000
- Outer sheath, material
- PUR
- Overall twist
- 3 pairs to the core
- Shielding
- Braided copper wires
- Signal speed
- 0.66 c
- Signal type/category
- INTERBUS
- Test voltage Core/Core
- 1500 Vrms
- Test voltage Core/Shield
- 1000 Vrms
- Traversing path
- 10 m
- Traversing rate
- 1.6 m/s
- Twisted pairs
- 2 cores to the pair
- Wave impedance
- 120 Ω ±20 % (at 64 kHz)
- 100 Ω ±15 % (with 1 MHz)
- Wire colors
- Green-yellow, white-brown, gray-pink
Dimensions
- Length of cable
- 5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Material
- Flammability rating according to UL 94
- V0
- Sealing material
- FKM
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standard designation
- M12 connector
- Standards/regulations
- IEC 61076-2-101
