Description

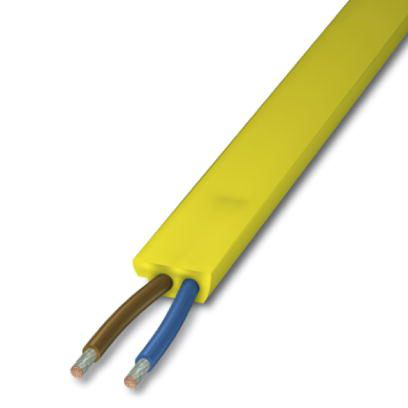

AS-Interface TPE flat conductor with UL in yellow, 2 x 1.5 mm², 1000 m on disposable drumFlat-ribbon conductor 1434662
Phoenix Contact 1434662 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -30 °C - 105 °C
- Ambient temperature (operation)
- -30 °C - 105 °C (Flexibly installed)
- -40 °C - 105 °C (fixed routing)
- Ambient temperature (storage/transport)
- -40 °C - 105 °C
Electrical characteristics
- Rated surge voltage
- 2 kV
- Rated voltage (III/3)
- 300 V
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Line characteristics
- Acceleration
- 4 m/s²
- Ambient temperature (operation)
- -30 °C - 105 °C (cable, flexible installation)
- -40 °C - 105 °C (cable, fixed installation)
- AWG signal line
- 16
- Bending radius
- 75 mm
- 50 mm
- Cable structure
- 2x 1.5 mm²
- Cable weight
- 64 kg/km
- Conductor cross section
- 1.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 13.7 Ω/km
- Conductor structure signal line
- 84x 0.15 mm
- Core diameter including insulation
- 2.5 mm
- External sheath, color
- lemon yellow RAL 1012
- Flame resistance
- IEC 60332-1-2
- UL 1581, Sec. 1061 (Cable Flame)
- Halogen-free
- no
- Insulation resistance
- ≥ 1 MΩ*km
- Material conductor insulation
- TPE
- Max. bending cycles
- 8000000
- 10000000
- Nominal voltage, cable
- 300 V
- Other resistance
- UV resistant
- Outer sheath, material
- TPE
- Resistance to oil
- UL 1581, Sec. 480 (60 °C)
- Smallest bending radius, fixed installation
- ≥ 6 mm (one-time)
- Special properties
- CSA-File LL55255-42
- UL-Style 2103
- Test voltage, cable
- 2000 V
- Thickness, insulation
- approx. 0.5 mm
- Traversing direction
- vertical, above the broadside
- horizontal, above the broadside
- Traversing rate
- 4 m/s
- Type of cable
- Flat-ribbon conductor
- Wire colors
- brown, blue
Material data
- External sheath, color
- yellow
- Height
- 4 mm
- Outer sheath, material
- TPE
Mechanical characteristics
- Cable structure
- 2x 1.5 mm²
- Duty cycle testing
- suitable for drag chain
- Length of cable
- 1000 m
- Number of positions
- 2
- Shielded
- no
- Type of cable
- Flat-ribbon conductor
Standards and Regulations
- Duty cycle testing
- suitable for drag chain
