Description

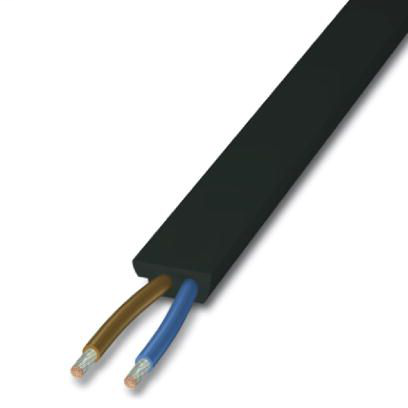

AS-Interface EPDM flat conductor in black, for additional power supply, 2 x 1.5 mm², 1000 m on a disposable drumFlat-ribbon conductor 1434659
Phoenix Contact 1434659 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C (Flexibly installed)
- -40 °C - 85 °C (fixed routing)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Line characteristics
- Ambient temperature (operation)
- -40 °C - 85 °C (cable, fixed installation)
- -25 °C - 85 °C (cable, flexible installation)
- AWG power supply
- 16
- Cable abbreviation
- 3G3G-FL
- cable layer type
- Outdoors and indoors
- Cable structure
- 2x 1.5 mm²
- Cable weight
- 85 kg/km
- Conductor cross section
- 1.5 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure, voltage supply
- 76x 0.16 mm
- Core diameter including insulation
- 2.5 mm
- External sheath, color
- black RAL 9005
- Material conductor insulation
- EPDM (rubber)
- Nominal voltage, cable
- 48 V (Uo)
- Other resistance
- ozone and UV resistant
- Outer sheath, material
- EPDM (rubber)
- Special properties
- Silicone-free
- Test voltage, cable
- 1000 V AC
- Thickness, insulation
- approx. 0.5 mm
- Type of cable
- Flat-ribbon conductor
- Wire colors
- brown, blue
Material data
- External sheath, color
- black
- Height
- 4 mm
- Outer sheath, material
- EPDM (rubber)
Mechanical characteristics
- Cable structure
- 2x 1.5 mm²
- Duty cycle testing
- suitable for drag chain
- Length of cable
- 1000 m
- Number of positions
- 2
- Shielded
- no
- Type of cable
- Flat-ribbon conductor
Standards and Regulations
- Duty cycle testing
- suitable for drag chain
