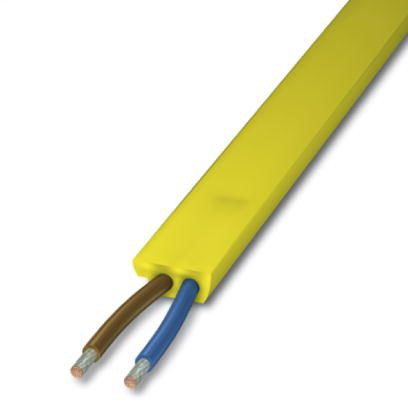

Phoenix Contact 1434646
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 1434646 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (fixed routing)
- -25 °C - 85 °C (Flexibly installed)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Line characteristics
- Ambient temperature (operation)
- -40 °C - 85 °C (cable, fixed installation)
- -25 °C - 85 °C (cable, flexible installation)
- AWG signal line
- 16
- Cable abbreviation
- 3G3G-FL
- cable layer type
- Indoors
- Cable structure
- 2x 1.5 mm²
- Cable weight
- 85 kg/km
- Conductor cross section
- 1.5 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 76x 0.16 mm
- Core diameter including insulation
- 2.5 mm
- External sheath, color
- lemon yellow RAL 1012
- Material conductor insulation
- EPDM (rubber)
- Nominal voltage, cable
- 32 V (Uo)
- Other resistance
- Resistant to ozone
- Outer sheath, material
- EPDM (rubber)
- Special properties
- Silicone-free
- Test voltage, cable
- 1000 V AC
- Thickness, insulation
- approx. 0.5 mm
- Type of cable
- Flat-ribbon conductor
- Wire colors
- brown, blue
Material data
- External sheath, color
- yellow
- Height
- 4 mm
- Outer sheath, material
- EPDM (rubber)
Mechanical characteristics
- Cable structure
- 2x 1.5 mm²
- Length of cable
- 1000 m
- Number of positions
- 2
- Shielded
- no
- Type of cable
- Flat-ribbon conductor
