Description

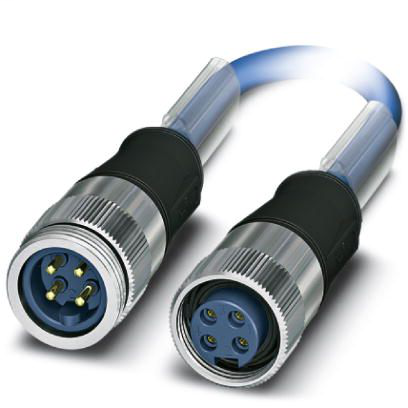

Bus system cable, FOUNDATION Fieldbus (31.25 kbps), 3-position, PVC, blue RAL 5015, shielded, Plug straight 7/8"-16UNF, A-coded, on Socket straight 7/8"-16UNF, A-coded, cable length: 0.3 mBus system cable 1434141
Phoenix Contact 1434141 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 105 °C (Plug / socket)
- Degree of protection
- 3 (NEMA)
- 6P (NEMA)
- 1 (NEMA)
- 4 (NEMA)
- IP67
Cable
- Ambient temperature (operation)
- -40 °C - 105 °C (cable, fixed installation)
- AWG signal line
- 18
- Cable capacity
- 147 pF/m (at 1 kHz, core/shield)
- ≤ 3.94 pF/m (capacitance unbalance)
- Cable impedance
- 100 Ω ±20 % (At 31.25 kHz)
- Cable structure
- 2xAWG18/7 + 1xAWG20/7
- Cable type
- Fieldbus FOUNDATION/PROFIBUS PA, blue
- Cable type (abbreviation)
- 961
- Cable weight
- 56.552 kg/km
- Conductor cross section
- 1x 0.5 mm² (Drain wire)
- 2x 0.75 mm² (Signal line)
- Conductor inductance
- 0.6233 µH/m
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- 26 Ω/km (shield)
- ≤ 19.35 Ω/km (Signal line)
- Conductor structure signal line
- 7x 0.40 mm
- Core diameter including insulation
- 2.24 mm ±0.05 mm
- External cable diameter D
- 7.5 mm ±0.25 mm
- External sheath, color
- blue RAL 5015
- Flame resistance
- UL 1685 (vertical tray)
- UL 1666 (riser)
- UL 1685 (CSA FT 4)
- Material conductor insulation
- PO (Signal line)
- Nominal voltage, cable
- 300 V
- Optical shield covering
- 100 %
- Outer sheath, material
- PVC
- Outer sheath thickness
- 1 mm
- Overall twist
- One pair with one drain wire and fillers for core
- Shield attenuation
- 3 dB/km (at 39 kHz)
- Shielding
- Plastic-coated aluminum foil with a drain wire
- Signal speed
- 0.66 c
- Smallest bending radius, fixed installation
- 75 mm
- Special properties
- UL standards PLTC-ER and ITC
- Tensile strength GRP
- 260 N
- Thickness, insulation
- 0.5 mm
- Twisted pairs
- 2 cores to the pair
- Wire colors
- Blue, orange
- Working capacitance
- 78 nF (at 1 kHz)
Dimensions
- Length of cable
- 0.3 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Material
- Contact carrier material
- PA66
- Contact material
- CuZn
- Contact surface material
- Au
- Material, knurls
- Stainless steel
- Material of grip body
- TPU
- Sealing material
- TPU
Pin assignment
- Contact | Color (signal designation) | Contact (optional)
- 1 (Plug) | BU (DATA-) | 1 (Socket)
- 2 (Plug) | OG (DATA+) | 2 (Socket)
- 3 (Plug) | SR (shield) | 3 (Socket)
