Phoenix Contact 1424129
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

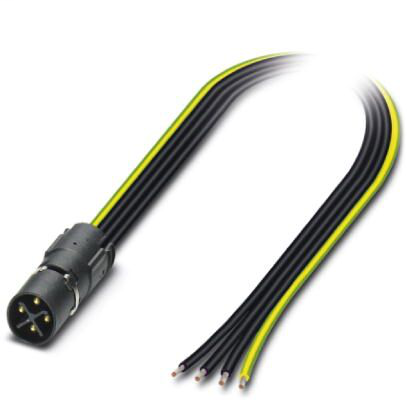

Assembled contact carrier and insulating body, S-coding, 3-pos. + PE, 0.5 m long litz wiresContact carriers - SACC-MCI-MSS-4CON/0,5 PE SCO - 1424129
Phoenix Contact 1424129 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C (Plug / socket)
- Degree of protection
- IP67
Cable
- Ambient temperature (operation)
- -20 °C - 105 °C (cable, flexible installation)
- -40 °C - 105 °C (cable, fixed installation)
- AWG signal line
- 16
- Cable type
- UL/cUL stranded hook-up wire
- Conductor cross section
- 1.31 mm²
- Conductor material
- Bare Cu litz wires
- Core diameter including insulation
- 2.2 mm
- Flame resistance
- in acc. to UL 1581 VW1
- Halogen-free
- yes
- Material conductor insulation
- mPPE
- Standards/specifications
- M12 connector IEC 61076-2-111 In line with
- Wire colors
- Black numbered, black numbered, black numbered, green-yellow
Dimensions
- Length of cable
- 0.5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA6
- Contact material
- CuZn
- Contact surface material
- Au
- Flammability rating according to UL 94
- V0
Standards and Regulations
- Flame resistance
- in acc. to UL 1581 VW1
- Flammability rating according to UL 94
- V0
- Halogen-free
- yes
- Standards/specifications
- M12 connector IEC 61076-2-111 In line with
