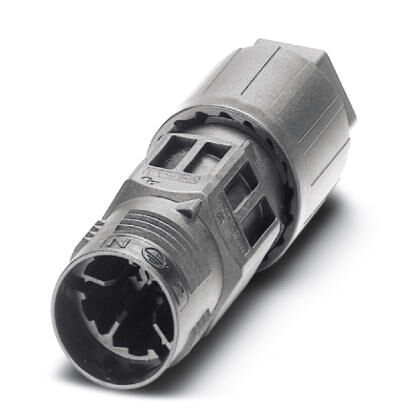

Phoenix Contact 1424025
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Conductor connectors, QUICKON connection, number of positions: 4, 1 mm² ... 2.5 mm², 690 V, 20 A, gray, with one QUICKON nut, cable diameter range: 9 mm ... 14 mm, QUICKON fast connectionConductor connectors - QPD C4X2,5/1X9-14 GY - 1424025
Phoenix Contact 1424025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 100 °C
- Ambient temperature (storage/transport)
- -40 °C - 100 °C
- Degree of protection
- IP66
- IP68 (2 m / 24 h)
- IP69K
- Temperature when conductor connected
- -5 °C - 50 °C
Cabel
- External cable diameter
- 9 mm - 14 mm
- Position marking
- 1, 2, 3, 4
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
- VDE 0295 class 1 to 6/min. 0.15 mm
- Wire diameter including insulation
- 2 mm - 3.6 mm
- Wire insulation material
- PVC/PE/TPE/rubber
Electrical characteristics
- Nominal current IN
- 20 A
- Nominal voltage UN
- 690 V AC
- 690 V DC
- Rated current
- 20 A
- Rated surge voltage (II/2)
- 6 kV
- Rated surge voltage (III/2)
- 6 kV
- Rated surge voltage (III/3)
- 6 kV
- Rated voltage (II/2)
- 1000 V
- Rated voltage (III/2)
- 690 V
- Rated voltage (III/3)
- 690 V
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material data
- Contact carrier material
- PA
- Contact material
- Cu
- Contact surface material
- silver-plated
- Degree of pollution
- 3
- Flammability rating according to UL 94
- V0
- Insulating material
- PA
- Overvoltage category
- III
Mechanical characteristics
- Category of shock impact
- IK07
- Insertion/withdrawal cycles
- >= 50 (QUICKON connections max. 10)
- QUICKON connectability
- max. 10
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Halogen-free
- yes
