Description

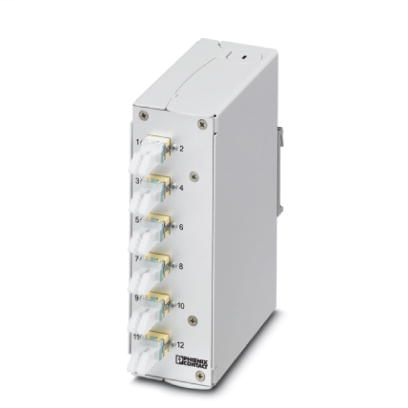

DIN rail splice box, mounted completely ready to splice, for 6x LC duplexSplice box 1420318
Phoenix Contact 1420318 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C (according to IEC 61300-2)
- Ambient temperature (storage/transport)
- -25 °C - 70 °C (according to IEC 61300-2)
- Degree of protection
- IP20
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Line characteristics
- Attenuation
- ≤ 0.3 dB (with 850 nm)
- Cable structure
- Semi-loose compact wires (STB)
- Cable type
- Multimode fiberglass
- Fiber
- GOF
- Fiber type
- Multi-mode 50/125 µm fiberglass
- Number of fibers
- 12
- Transmission medium
- FO
- Type of cable
- For all common cable types
Material data
- Depth
- 110 mm
- Ferrule material
- Zirconia ceramics
- Flammability rating according to UL 94
- V0
- Height
- 150 mm
- Housing material
- Sheet steel
- Housing surface material
- Powder-coated, gray
- Housing width
- 52 mm
Mechanical characteristics
- Cable outlet
- top
- Cable structure
- Semi-loose compact wires (STB)
- Color
- light grey RAL 7035
- Connection method
- Splicing
- Connection profile
- LC-Duplex
- Degree of protection
- IP20
- Ferrule diameter
- 1.25 mm
- Fiber type
- GOF
- Mounting type
- DIN rail mounting
- No. of cable outlets
- 2
- Note
- DIN rail splice box without pigtails and splice comb is available under Order No. 1411901
- Number of slots
- 6
- Type
- Rail-mountable module
- Type of cable
- For all common cable types
- Type of note
- Order information:
Standards and Regulations
- Flammability rating according to UL 94
- V0
