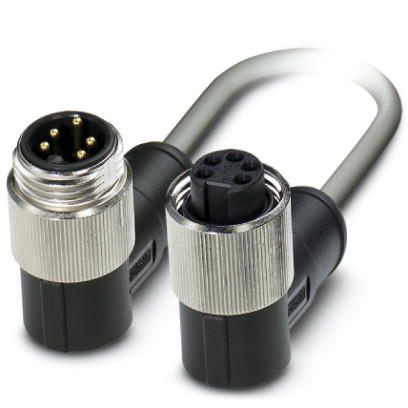

Bus system cable, DeviceNet™, 5-position, PUR halogen-free, gray RAL 7001, shielded, Plug angled 7/8"-16UNF, on Socket angled 7/8"-16UNF, cable length: 20 mBus system cable 1420113
Phoenix Contact 1420113 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 80 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Acceleration
- 3 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -20 °C - 80 °C (cable, flexible installation)
- Attenuation
- ≤ 9.5 dB/km (At 125 kHz)
- ≤ 16.4 dB/km (At 500 kHz)
- ≤ 22.9 dB/km (with 1 MHz)
- AWG power supply
- 22
- AWG signal line
- 24
- Bending radius
- 70 mm
- Cable capacity
- nom. 40 nF/km (Data cable)
- Cable structure
- 2xAWG24/19+2xAWG22/19
- Cable type
- CAN Bus/DeviceNet drop cable
- Cable type (abbreviation)
- 923
- Cable weight
- 90 kg/km
- Conductor cross section
- 2x 0.34 mm² (Power supply)
- 2x 0.25 mm² (Data cable)
- 1x 0.34 mm² (Drain wire)
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 19x 0.13 mm
- Conductor structure, voltage supply
- 19x 0.15 mm
- Core diameter including insulation
- 1.95 mm ±0.05 mm (Data cable)
- 1.4 mm ±0.05 mm (Power supply)
- External cable diameter D
- 6.7 mm ±0,3 mm
- External sheath, color
- silver-gray RAL 7001
- Flame resistance
- UL 1581, Sec. 1060 (FT-1)
- IEC 60332-1
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- according to IEC 60754-1
- Insulation resistance
- ≥ 5 GΩ*km (Data cable)
- ≥ 5 GΩ*km (Power supply)
- Loop resistance
- ≤ 181.80 Ω/km (Data cable)
- ≤ 114.80 Ω/km (Power supply)
- Material conductor insulation
- Foamed PE (Data cable)
- PE (Power supply)
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V (Peak value, not for high-power applications)
- Number of bending cycles
- 5000000
- Optical shield covering
- 80 %
- Other resistance
- Low adhesion
- Outer sheath, material
- PUR
- Overall twist
- 2 pairs around a drain wire in the center to the core
- Shielding
- Tinned copper braided shield
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Traversing path
- 4.5 m
- Traversing rate
- 3 m/s
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Plastic-coated aluminum foil, aluminum side outside
- UL AWM style
- 21198 (80°C/300 V)
- Wave impedance
- 120 Ω ±10 % (with 1 MHz)
- Wire colors
- Red-black, blue-white
Dimensions
- Length of cable
- 20 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Material
- Flammability rating according to UL 94
- HB
- Material, knurls
- Stainless steel
Pin assignment
- Contact | Color (signal designation) | Contact (optional)
- 4 (Plug) | WH (CAN_H) | 4 (Socket)
- 1 (Plug) | SR (shield) | 1 (Socket)
- 2 (Plug) | RD (V+) | 2 (Socket)
- 3 (Plug) | BK (V-) | 3 (Socket)
- 5 (Plug) | BU (CAN_L) | 5 (Socket)
