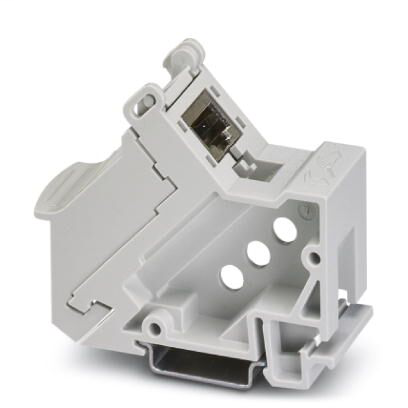

Phoenix Contact 1419024
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 1419024 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP20
Electrical characteristics
- Frequency range
- 500 MHz
- GRP transmission properties
- CAT6A
- Insulation resistance
- > 500 MΩ (100 V DC)
- Nominal current IN
- 1.5 A
- Nominal voltage UN
- 72 V (DC)
- Number of positions
- 8
- Rated voltage (III/3)
- 72 V (DC)
- Transmission speed
- 10 Gbps
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material data
- Contact carrier material
- Die-cast zinc alloy
- Contact material
- CuSn
- Contact surface material
- Gold over nickel
- Height
- 71 mm
- Housing material
- PC-GF
- Length
- 81.4 mm
- Mounting type
- DIN rail mounting
- Width
- 26.8 mm
Mechanical characteristics
- AWG solid max.
- 22
- AWG solid min.
- 26
- Connection method
- IDC connection
- Maximum external conductor diameter
- 9 mm
- Minimum external conductor diameter
- 4.5 mm
- Number of slots
- 1
- Weight
- 59.5 g
Standards and Regulations
- Flammability rating according to UL 94
- V0
