Phoenix Contact 1418552
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

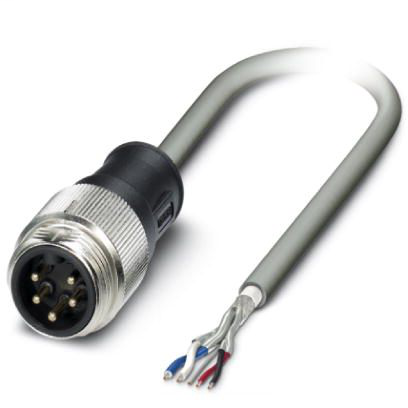

Bus system cable, DeviceNet™, 5-position, PUR halogen-free, gray RAL 7001, shielded, Plug straight 7/8"-16UNF, on free cable end, cable length: 15 mBus system cable 1418552
Phoenix Contact 1418552 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 80 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Acceleration
- 3 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -20 °C - 80 °C (cable, flexible installation)
- Attenuation
- ≤ 16.4 dB/km (At 500 kHz)
- ≤ 22.9 dB/km (with 1 MHz)
- ≤ 9.5 dB/km (At 125 kHz)
- AWG power supply
- 22
- AWG signal line
- 24
- Bending radius
- 70 mm
- Cable capacity
- nom. 40 nF/km (Data cable)
- Cable structure
- 2xAWG24/19+2xAWG22/19
- Cable type
- CAN Bus/DeviceNet drop cable
- Cable type (abbreviation)
- 923
- Cable weight
- 90 kg/km
- Conductor cross section
- 2x 0.25 mm² (Data cable)
- 2x 0.34 mm² (Power supply)
- 1x 0.34 mm² (Drain wire)
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 19x 0.13 mm
- Conductor structure, voltage supply
- 19x 0.15 mm
- Core diameter including insulation
- 1.95 mm ±0.05 mm (Data cable)
- 1.4 mm ±0.05 mm (Power supply)
- External cable diameter D
- 6.7 mm ±0,3 mm
- External sheath, color
- silver-gray RAL 7001
- Flame resistance
- UL 1581, Sec. 1060 (FT-1)
- IEC 60332-1
- Halogen-free
- according to IEC 60754-1
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 5 GΩ*km (Power supply)
- ≥ 5 GΩ*km (Data cable)
- Loop resistance
- ≤ 114.80 Ω/km (Power supply)
- ≤ 181.80 Ω/km (Data cable)
- Material conductor insulation
- PE (Power supply)
- Foamed PE (Data cable)
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V (Peak value, not for high-power applications)
- Number of bending cycles
- 5000000
- Optical shield covering
- 80 %
- Other resistance
- Low adhesion
- Outer sheath, material
- PUR
- Overall twist
- 2 pairs around a drain wire in the center to the core
- Shielding
- Tinned copper braided shield
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Traversing path
- 4.5 m
- Traversing rate
- 3 m/s
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Plastic-coated aluminum foil, aluminum side outside
- UL AWM style
- 21198 (80°C/300 V)
- Wave impedance
- 120 Ω ±10 % (with 1 MHz)
- Wire colors
- Red-black, blue-white
Dimensions
- Length of cable
- 15 m
- Stripping length of the free conductor end
- 50 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Stainless steel
- Material of grip body
- TPU
- Sealing material
- TPU
Pin assignment
- Contact | Color (signal designation) | Contact (optional)
- 4 (Plug) | WH (CAN_H)
- 5 (Plug) | BU (CAN_L)
- 1 (Plug) | SR (shield)
- 2 (Plug) | RD (V+)
- 3 (Plug) | BK (V-)
Standards and Regulations
- Flammability rating according to UL 94
- HB
