Description

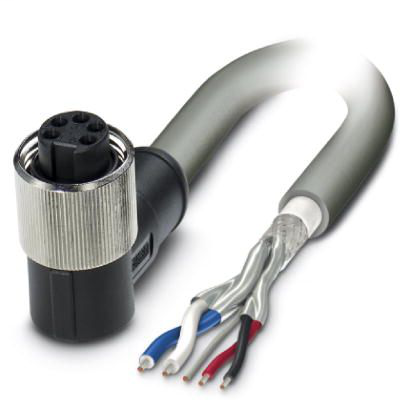

Bus system cable, DeviceNet™, 5-position, PVC, gray RAL 7001, shielded, free cable end, on Socket angled 7/8"-16UNF, cable length: 20 m, Connector unshieldedBus system cable 1417540
Phoenix Contact 1417540 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 80 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG power supply
- 15
- AWG signal line
- 18
- Cable structure
- 2xAWG18 (Signal) + 2xAWG15 (Power)
- Cable type
- DeviceNet trunk cable
- Cable type (abbreviation)
- 928
- Conductor cross section
- 1x 1 mm² (Drain wire)
- 2x 1 mm² (Data pair)
- 2x 1.7 mm² (Power supply)
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 19x 0.26 mm
- Conductor structure, voltage supply
- 19x 0.34 mm
- Core diameter including insulation
- approx. 2.7 mm (Power supply)
- approx. 3.8 mm (Data pair)
- External cable diameter D
- 12.2 mm ±0,3 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- According to UL 1581 (Cable Flame)
- According to IEC 60332-3-24
- according to UL 1685 (CSA FT 4)
- Insulation resistance
- > 5 GΩ*km
- Material conductor insulation
- PVC (Power supply)
- Foamed PE (Data pair)
- Minimum bending radius, fixed installation
- 5 x D
- Nominal voltage, cable
- < 600 V (Peak value, not for high-power applications)
- Optical shield covering
- 70 %
- Other resistance
- UV resistant According to UL 1581, Section 1200
- Outer sheath, material
- PVC
- Overall twist
- 2 pairs and one drain wire to the core
- Resistance to oil
- UL 1581
- Shielding
- Tinned copper braided shield
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Plastic-coated aluminum foil, aluminum side outside
- UL AWM style
- 20201 (60°C / 600 V)
- Wave impedance
- 120 Ω ±12 Ω (f = 1 MHz)
- Wire colors
- Red-black, blue-white
- Working capacitance
- nom. 40 nF
Dimensions
- Length of cable
- 20 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Stainless steel
- Material of grip body
- TPU
- Sealing material
- TPU
Pin assignment
- Contact | Color (signal designation) | Contact (optional)
- 3 (Socket) | BK (V-)
- 2 (Socket) | RD (V+)
- 5 (Socket) | BU (CAN_L)
- 4 (Socket) | WH (CAN_H)
- 1 (Socket) | SR (shield)
Standards and Regulations
- Flammability rating according to UL 94
- HB
