Phoenix Contact 1416486
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

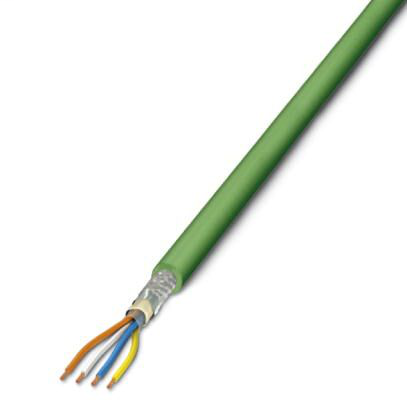

Network cable, PROFINET CAT5 (100 Mbps), 4-position, PVC, green-yellow RAL 6018, free cable end, on free cable end, cable length: Free entry (0.5 ... 400 m)Network cable - VS-93A/... - 1416486
Phoenix Contact 1416486 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 80 °C (fixed routing)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
Cable
- Ambient temperature (installation)
- -5 °C - 50 °C
- Ambient temperature (operation)
- -25 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- AWG signal line
- 22
- Cable structure
- 1x4xAWG22/1; SF/TQ
- Cable type
- PROFINET
- Cable type (abbreviation)
- 93A
- Conductor cross section
- 4x 0.34 mm²
- Conductor material
- Tin-plated Cu wire
- Conductor resistance
- ≤ 57.1 Ω/km
- Conductor structure signal line
- 1x 0.65 mm
- Core diameter including insulation
- 1.5 mm ±0.05 mm
- Coupling resistance
- < 10.00 mΩ/m (at 10 MHz)
- External cable diameter D
- 6.5 mm ±0.2 mm
- External sheath, color
- green-yellow RAL 6018
- Flame resistance
- According to VW-1
- Material conductor insulation
- PE
- Nominal voltage, cable
- 300 V
- Optical shield covering
- 90 %
- Outer sheath, material
- PVC
- Overall twist
- Star quad
- Resistance to oil
- according to IEC 60811-2-1
- Shielding
- SF/TQ
- Signal runtime
- 5.3 ns/m
- Signal speed
- 0.68 c
- Signal type/category
- PROFINET CAT5 (IEC 11801), 100 Mbps
- Test voltage Core/Core
- 2500 V DC
- Test voltage Core/Shield
- 2500 V DC
- UL AWM style
- 2464 (80°C/300 V)
- Wave impedance
- 100 Ω ±15 Ω (at 1 - 100 MHz)
- Wire colors
- White, yellow, blue, orange
Dimensions
- Length of cable
- Free entry (0.5 - 400 m)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
General data
- Note
- This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 9.1.1 Balanced Cables (Type A,B,C)
- Number of positions
- 4
- Rated voltage
- 48 V AC
- 60 V DC
- Signal type/category
- PROFINET CAT5 (IEC 11801), 100 Mbps
