Phoenix Contact 1416281
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

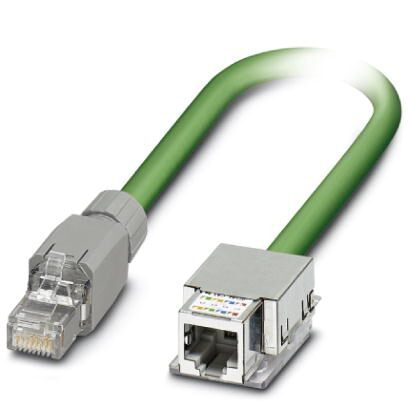

Assembled PROFINET cable, CAT5e, shielded, star quad, AWG 22 stranded (19-wire), RAL 6018 (yellow green), RJ45 socket module/IP20 for Freenet system, 4-pos. on RJ45 plug/IP20, line, length: 2 mNetwork cable - VS-BU/PN-IP20-93R-LI/2,0 - 1416281
Phoenix Contact 1416281 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP20
Cable
- Ambient temperature (installation)
- -20 °C - 60 °C
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Attenuation
- 26.5 dB (at 62.5 МHz)
- 8.1 dB (at 10 MHz)
- 11.9 dB (at 20 МHz)
- 10.4 dB (at 16 MHz)
- 2.9 dB (with 1 MHz)
- 41 dB (at 100 MHz)
- 5 dB (at 4 МHz)
- 15.5 dB (at 31.25 МHz)
- AWG signal line
- 22
- Cable structure
- 1x4xAWG22/19; S/TQ
- Cable type
- PROFINET robot CAT5
- Cable type (abbreviation)
- 93R
- Cable weight
- 55 kg/km
- Conductor cross section
- 4x 0.34 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 19x 0.15 mm
- Core diameter including insulation
- 1.5 mm
- External cable diameter D
- 6.5 mm ±0.2 mm
- External sheath, color
- green RAL 6018
- Flame resistance
- according to IEC 60332-1-2
- Halogen-free
- according to IEC 60754-1
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 120.00 Ω/km
- Material conductor insulation
- Foamed PE
- Minimum bending radius, fixed installation
- 5 x D
- Nominal voltage, cable
- 300 V
- Optical shield covering
- 85 %
- Other resistance
- UV resistant According to UL 1581, Section 1200
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 1 mm
- Overall twist
- Star quad
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Shielding
- Tinned copper braided shield
- Signal runtime
- 4.8 ns/m
- Signal type/category
- PROFINET CAT5 (IEC 11801), 100 Mbps
- EtherCAT® CAT5 (IEC 11801), 100 Mbps
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Torsion force
- ± 180 °/m (1 000 000 torsion cycles)
- UL AWM style
- 20233 (80°C/300 V)
- Wave impedance
- 100 Ω ±5 Ω (at 100 MHz)
- Wire colors
- White, yellow, blue, orange
Characteristics head 1
- External sheath, color
- green RAL 6018
- Outer sheath, material
- PUR
- Shielded
- yes
Characteristics head 2
- Material (component)
- Plastic
Dimensions
- Length of cable
- 2.00 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
General data
- Degree of protection
- IP20
- Number of positions
- 4
