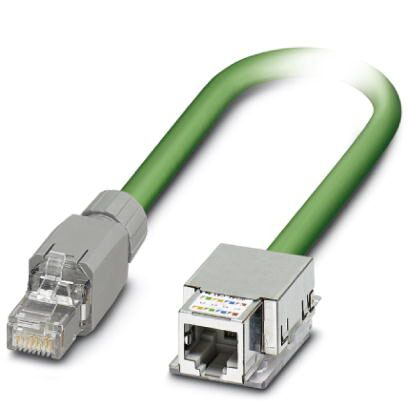

Phoenix Contact 1416227
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Assembled PROFINET cable, CAT5e, shielded, star quad, AWG 22 flexible cable conduit capable (7-wire), RAL 6018 (yellow-green), RJ45 socket module/IP20 for Freenet system, 4-pos. on RJ45 plug/IP20, line, length 2 mNetwork cable - VS-BU/PN-IP20-93C-LI/2,0 - 1416227
Phoenix Contact 1416227 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP20
Cable
- Acceleration
- 4 m/s²
- Ambient temperature (installation)
- -20 °C - 60 °C
- Ambient temperature (operation)
- -40 °C - 70 °C (cable, fixed installation)
- -40 °C - 70 °C (cable, flexible installation)
- Ambient temperature (storage/transport)
- -50 °C - 70 °C
- Attenuation
- 9 dB (at 20 МHz)
- 4 dB (at 4 МHz)
- 16.5 dB (at 62.5 МHz)
- 2.1 dB (with 1 MHz)
- 21.3 dB (at 100 MHz)
- 11.4 dB (at 31.25 МHz)
- 6.3 dB (at 10 MHz)
- 8 dB (at 16 MHz)
- AWG signal line
- 22
- Bending radius
- 100 mm
- Cable structure
- 1x4xAWG22/7; SF/TQ
- Cable type
- PROFINET drag chain CAT5
- Cable type (abbreviation)
- 93C
- Cable weight
- 61 kg/km
- Conductor cross section
- 4x 0.34 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 7x 0.25 mm
- Core diameter including insulation
- 1.5 mm
- Coupling resistance
- ≤ 20.00 mΩ/m (at 10 MHz)
- External cable diameter D
- 6.5 mm ±0.2 mm
- External sheath, color
- green RAL 6018
- Flame resistance
- according to IEC 60332-1-2
- Halogen-free
- yes
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 120.00 Ω/km
- Material conductor insulation
- PE
- Material, inner sheath
- FRNC
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 7.5 x D
- Near end crosstalk attenuation (NEXT)
- 76 dB (at 4 МHz)
- 70 dB (at 10 MHz)
- 65 dB (at 16 MHz)
- 55 dB (at 62.5 МHz)
- 63 dB (at 20 МHz)
- 50 dB (at 100 MHz)
- 60 dB (at 31.25 МHz)
- 80 dB (with 1 MHz)
- Nominal voltage, cable
- 600 V (UL rating)
- Number of bending cycles
- 3000000
- Optical shield covering
- 85 %
- Other resistance
- UV resistant
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.9 mm
- Overall twist
- Star quad
- Product labeling
- sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier)
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Shielding
- Aluminum-coated foil, tinned copper braided shield
- Signal runtime
- 5.3 ns/m
- Signal speed
- 0.66 c
- Signal type/category
- PROFINET CAT5 (IEC 11801), 100 Mbps
- EtherCAT® CAT5 (IEC 11801), 100 Mbps
- Special properties
- Electrical properties according to EN 50288-2-2
- Tensile strength GRP
- ≤ 150 N
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Torsion force
- ± 30 °/m
- Traversing path
- 10 m
- Traversing rate
- 4 m/s
- Wave impedance
- 100 Ω ±15 Ω (at 1 - 100 MHz)
- Wire colors
- White, yellow, blue, orange
Characteristics head 1
- External sheath, color
- green RAL 6018
- Outer sheath, material
- PUR
- Shielded
- yes
Characteristics head 2
- Material (component)
- Plastic
Dimensions
- Length of cable
- 2.00 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
General data
- Alternative short product description
- PROFINET cable
- Degree of pollution
- 1
- Degree of protection
- IP20
- Number of positions
- 4
- Overvoltage category
- I
Standards and Regulations
- Flammability rating according to UL 94
- V0
