Description

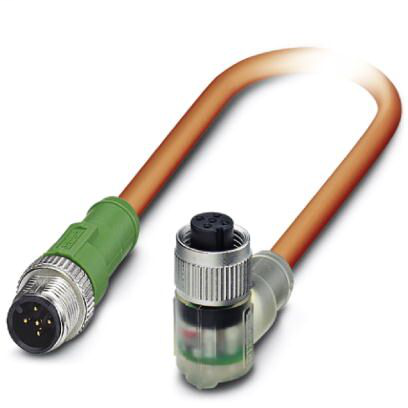

Sensor/actuator cable, 5-position, PUR halogen-free, welding sputter-resistant, orange RAL 2003, Plug straight M12, coding: A, on Socket straight M12, coding: A, with 3 LEDs, cable length: 3 m, for robots and drag chainsSensor/actuator cable - SAC-5P-M12MS/3,0-810/M12FS-3L - 1416224
Phoenix Contact 1416224 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
Cable
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- ≤ 60 °C (cable, drag chain applications)
- AWG signal line
- 22
- Cable abbreviation
- LiF9Y11Y
- Cable type
- PUR, halogen-free, highly flexible, welding-sputter resistant, orange
- Cable type (abbreviation)
- 810
- Conductor cross section
- 5x 0.34 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- approx. 57 Ω/km
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.55 mm ±0.05 mm (Signal line)
- External cable diameter D
- 6.9 mm ±0.1 mm
- External sheath, color
- orange RAL 2003
- Flame resistance
- in acc. with UL FT-2
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- 300 V (Peak value, not for high-power applications)
- Note
- Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
- Number of bending cycles
- 5000000
- Other resistance
- hydrolysis and microbe resistant
- Outer sheath, material
- PUR
- Overall twist
- 5 wires around filler to the core
- Special properties
- Sheath resistant to welding beads, can be recycled, matt, without adhesion, wear-resistant, flame resistant and self-extinguishing
- Free of substances which would hinder coating with paint or varnish
- Free from silicone and cadmium
- Test voltage Core/Core
- 3000 V (Spark test)
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 (80°C/300 V)
- Wire colors
- brown, white, blue, black, green-yellow
Dimensions
- Length of cable
- 3 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- HB
- Standards/specifications
- M12 connector IEC 61076-2-101
