Description

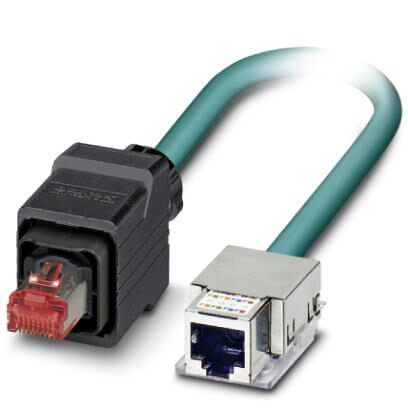

Assembled Ethernet cable, CAT6, shielded, 4-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), RJ45 socket module/IP20 for Freenet system, 8-pos. on RJ45 plug/IP67 push-pull plastic housing, line, length 5 mNetwork cable - VS-BU/C6-PPC/PL-94F-LI/5,0 - 1416017
Phoenix Contact 1416017 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 50 °C (cable, flexible installation)
- -20 °C - 60 °C (cable, fixed installation)
Cable
- Ambient temperature (installation)
- -20 °C - 80 °C
- Ambient temperature (operation)
- -20 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- Ambient temperature (storage/transport)
- -20 °C - 80 °C
- Attenuation
- 60.1 dB (at 400 MHz)
- 3.1 dB (with 1 MHz)
- 11.2 dB (at 16 MHz)
- 41.4 dB (at 200 MHz)
- 14.1 dB (at 25 MHz)
- 5.7 dB (at 4 МHz)
- 8.9 dB (at 10 MHz)
- 51.4 dB (at 300 MHz)
- 12.6 dB (at 20 МHz)
- 67.9 dB (at 500 MHz)
- 15.8 dB (at 31.25 МHz)
- 46.6 dB (at 250 MHz)
- 28.7 dB (at 100 MHz)
- 8 dB (at 8 МHz)
- 22.5 dB (at 62.5 МHz)
- AWG signal line
- 26
- Cable capacity
- 47 nF/km
- Cable structure
- 4x2xAWG26/7; S/FTP
- Cable type
- Ethernet 10 Gbit
- Cable type (abbreviation)
- 94F
- Cable weight
- 42 kg/km
- Conductor cross section
- 4x 2x 0.14 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 7x 0.16 mm
- Core diameter including insulation
- 1.04 mm
- External cable diameter D
- 6.4 mm ±0.2 mm
- External sheath, color
- water blue RAL 5021
- Flame resistance
- according to IEC 60332-1-2
- Halogen-free
- according to IEC 60754-1
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 290.00 Ω/km
- Material conductor insulation
- Foamed PE
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 8 x D
- Near end crosstalk attenuation (NEXT)
- 60.3 dB (at 10 MHz)
- 38.1 dB (at 300 MHz)
- 54.3 dB (at 25 MHz)
- 75.3 dB (with 1 MHz)
- 34.8 dB (at 500 MHz)
- 40.8 dB (at 200 MHz)
- 45.3 dB (at 100 MHz)
- 55.8 dB (at 20 МHz)
- 36.3 dB (at 400 MHz)
- 66.3 dB (at 4 МHz)
- 61.8 dB (at 8 МHz)
- 57.2 dB (at 16 MHz)
- 48.4 dB (at 62.5 МHz)
- 52.8 dB (at 31.25 МHz)
- 39.3 dB (at 250 MHz)
- Nominal voltage, cable
- ≤ 100 V
- Optical shield covering
- 70 %
- Outer sheath, material
- PUR
- Outer sheath thickness
- 0.65 mm
- Overall twist
- 4 pairs for core
- Power-summated near end crosstalk attenuation (PSNEXT)
- 63.3 dB (at 4 МHz)
- 51.3 dB (at 25 MHz)
- 52.8 dB (at 20 МHz)
- 37.8 dB (at 200 MHz)
- 72.3 dB (with 1 MHz)
- 49.9 dB (at 31.25 МHz)
- 57.3 dB (at 10 MHz)
- 33.3 dB (at 400 MHz)
- 42.3 dB (at 100 MHz)
- 45.4 dB (at 62.5 МHz)
- 35.1 dB (at 300 MHz)
- 31.8 dB (at 500 MHz)
- 58.8 dB (at 8 МHz)
- 54.2 dB (at 16 MHz)
- 36.3 dB (at 250 MHz)
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Return loss (RL)
- 15.6 dB (at 500 MHz)
- 24.2 dB (at 25 MHz)
- 20.7 dB (at 62.5 МHz)
- 15.6 dB (at 250 MHz)
- 20 dB (with 1 MHz)
- 16.4 dB (at 200 MHz)
- 25 dB (at 10 MHz)
- 24.5 dB (at 8 МHz)
- 23 dB (at 4 МHz)
- 19 dB (at 100 MHz)
- 25 dB (at 20 МHz)
- 15.6 dB (at 300 MHz)
- 23.3 dB (at 31.25 МHz)
- 15.6 dB (at 400 MHz)
- 25 dB (at 16 MHz)
- Shield attenuation
- ≥ 80 dB (at 30 - 100 MHz)
- Shielding
- Tinned copper braided shield
- Signal runtime
- 5.13 ns/m
- Signal type/category
- Ethernet CAT6A, 10 Gbps
- Tensile strength GRP
- ≤ 100 N
- Test voltage Core/Core
- 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 700 V (50 Hz, 1 min.)
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Aluminum-lined foil
- UL AWM style
- 20963 (80°C/30 V)
- Wave impedance
- 100 Ω ±5 Ω (at 100 MHz)
- Wire colors
- white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Characteristics head 1
- External sheath, color
- water blue RAL 5021
- Outer sheath, material
- PUR
- Shielded
- yes
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
General data
- Alternative short product description
- Ethernet cable
- Degree of pollution
- 2
- Number of positions
- 8
Standards and Regulations
- Flammability rating according to UL 94
- V2
