Phoenix Contact 1414869
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

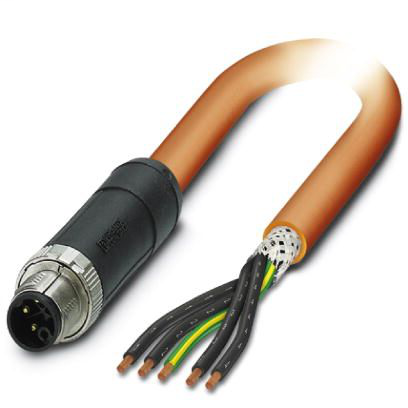

Power cable, 5-position, PVC, Orange (RAL 2003), matt, shielded, Plug straight M12, K-coded, on free cable end, cable length: 1.5 m, for AC current up to 16 A/690 VPower cable 1414869
Phoenix Contact 1414869 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 85 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Cable
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -20 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG power supply
- 14
- Cable type
- PVC
- Cable type (abbreviation)
- PVC
- Cable weight
- 249 kg/km
- Conductor cross section
- 5x 2.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 8 Ω/km (at 20 °C)
- Conductor structure, voltage supply
- 141x 0.15 mm
- Core diameter including insulation
- 3 mm ±0.1 mm
- External cable diameter D
- 11.45 mm ±0,3 mm
- External sheath, color
- orange RAL 2003
- Flame resistance
- According to DIN EN 60332-1-2
- according to UL 758/1581 FT1
- According to UL 758/1581 (Cable Flame)
- Insulation resistance
- ≥ 100 MΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 1000 V AC
- Number of bending cycles
- 1000000
- Outer sheath, material
- PVC
- Outer sheath thickness
- approx. 0.76 mm
- Resistance to oil
- According to DIN EN 60811-404, 168 h at 60 °C
- Test voltage, cable
- ≥ 10000 V AC (Spark test)
- Thickness, insulation
- ≥ 0.36 mm
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 2570 / 10914 (80°C/1000 V)
- Wire colors
- Black 1, black 2, black 3, black 4, green/yellow
Dimensions
- Length of cable
- 1.5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Material
- Contact carrier material
- PA
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- PA
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standard designation
- M12 connector
- Standards/regulations
- IEC 61076-2-111
