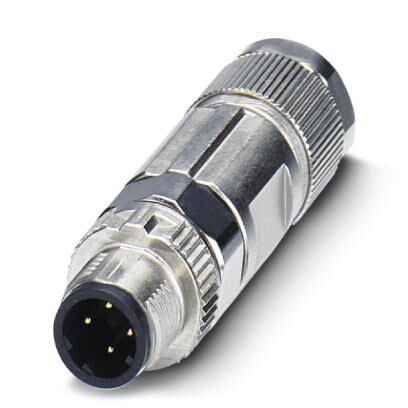

Phoenix Contact 1414089
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Phoenix Contact 1414089 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
Dimensions
- Diameter housing
- 16 mm
- External cable diameter
- 5.5 mm - 10 mm
- Length
- 51 mm
- Stripping length of the individual wire
- 4 mm +0,5 mm
- Stripping length of the sheath
- 26 mm
- Wrench size, union nut
- 15 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Material
- Additional material specifications
- nickel-plated (Housing surface)
- Zinc die-cast (Housing)
- Contact carrier material
- PA 6.6
- Contact material
- CuZn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- Zinc die-cast, nickel-plated
- Sealing material
- FKM
- Standards/regulations
- PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standards/specifications
- M12 connector IEC 61076-2-101
- Shock, vibration EN 50155:2001
