Phoenix Contact 1412260
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

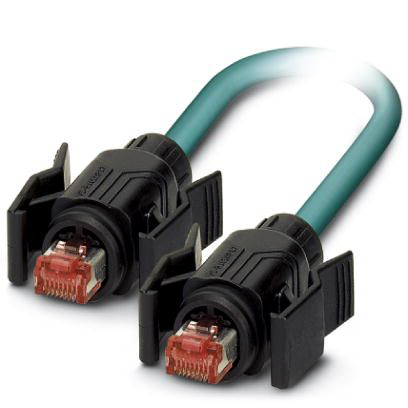

Assembled Ethernet cable, shielded, 4-pair, AWG 26 stranded (7-wire), RAL 5021 (sea blue), RJ45 connector/IP67, black to RJ45 connector/IP67, black, line, length 5 mNetwork cable 1412260
Phoenix Contact 1412260 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP67
Cable
- Ambient temperature (installation)
- -20 °C - 80 °C
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -20 °C - 80 °C (cable, flexible installation)
- Ambient temperature (storage/transport)
- -20 °C - 80 °C
- Attenuation
- 12.1 dB (at 16 MHz)
- 6 dB (at 4 МHz)
- 32 dB (at 100 MHz)
- 17.1 dB (at 31.25 МHz)
- 9.5 dB (at 10 MHz)
- 13.6 dB (at 20 МHz)
- 24.8 dB (at 62.5 МHz)
- 3.2 dB (with 1 MHz)
- AWG signal line
- 26
- Cable capacity
- 48 nF/km (at 1 kHz)
- Cable structure
- 4x2xAWG26/7; SF/UTP
- Cable type
- Ethernet, flexible, CAT5
- Cable type (abbreviation)
- 94B
- Cable weight
- 47 kg/km
- Conductor cross section
- 4x 2x 0.14 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 7x 0.16 mm
- Core diameter including insulation
- 0.96 mm
- Coupling resistance
- ≤ 100.00 mΩ/m (at 10 MHz)
- External cable diameter D
- 6.4 mm ±0.2 mm
- External sheath, color
- water blue RAL 5021
- Flame resistance
- according to IEC 60332-1-2
- Halogen-free
- according to IEC 60754-1
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 290.00 Ω/km
- Material conductor insulation
- Foamed PE
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 8 x D
- Near end crosstalk attenuation (NEXT)
- 44.4 dB (at 62.5 МHz)
- 71.3 dB (with 1 MHz)
- 48.9 dB (at 31.25 МHz)
- 41.3 dB (at 100 MHz)
- 53.2 dB (at 16 MHz)
- 56.3 dB (at 10 MHz)
- 51.8 dB (at 20 МHz)
- 62.3 dB (at 4 МHz)
- Nominal voltage, cable
- ≤ 100 V
- Optical shield covering
- 70 %
- Outer sheath, material
- PUR
- Outer sheath thickness
- 1.05 mm
- Overall twist
- 4 pairs for core
- Power-summated near end crosstalk attenuation (PSNEXT)
- 53.3 dB (at 4 МHz)
- 42.8 dB (at 20 МHz)
- 32.3 dB (at 100 MHz)
- 39.9 dB (at 31.25 МHz)
- 44.2 dB (at 16 MHz)
- 35.4 dB (at 62.5 МHz)
- 47.3 dB (at 10 MHz)
- 62.3 dB (with 1 MHz)
- Resistance to oil
- according to EN 60811-2-1
- Return loss (RL)
- 25 dB (at 20 МHz)
- 25 dB (at 10 MHz)
- 21.5 dB (at 62.5 МHz)
- 25 dB (at 16 MHz)
- 23.6 dB (at 31.25 МHz)
- 20.1 dB (at 100 MHz)
- 24.1 dB (at 8 МHz)
- 23 dB (at 4 МHz)
- Shielding
- Aluminum-coated foil, tinned copper braided shield
- Signal runtime
- 5.3 ns/m
- Signal type/category
- Ethernet CAT5 (IEC 11801), 1 Gbps
- Tensile strength GRP
- ≤ 100 N
- Test voltage Core/Core
- 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 700 V (50 Hz, 1 min.)
- Twisted pairs
- 2 cores to the pair
- UL AWM style
- 20963 (80°C/30 V)
- Wave impedance
- 100 Ω ±5 Ω (at 100 MHz)
- Wire colors
- white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Characteristics head 1
- Color
- black
Characteristics head 2
- Color
- black
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
General data
- Alternative short product description
- Ethernet cable
- Degree of pollution
- 2
- Number of positions
- 8
Standards and Regulations
- Flammability rating according to UL 94
- V2
