Description

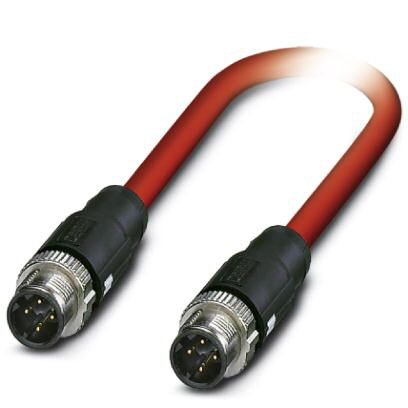

Network cable, Sercos CAT5 (100 Mbps), 4-position, PVC/PVC, signal red RAL 3020, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug straight M12 SPEEDCON / IP67, coding: D, cable length: 5 mNetwork cable - NBC-MSD/ 5,0-93K/MSD SCO - 1411532
Phoenix Contact 1411532 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (M12 connector)
- Degree of protection
- IP67 (M12 connector)
- IP65 (M12 connector)
Cable
- Ambient temperature (installation)
- -20 °C - 60 °C
- Ambient temperature (operation)
- -40 °C - 70 °C (cable, fixed installation)
- -40 °C - 70 °C (cable, flexible installation)
- Ambient temperature (storage/transport)
- -50 °C - 70 °C
- AWG signal line
- 22
- Cable structure
- 1x4xAWG22/7; SF/TQ
- Cable type
- Sercos III
- Cable type (abbreviation)
- 93K
- Cable weight
- 68 kg/km
- Conductor cross section
- 4x 0.34 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 120 Ω/km
- Conductor structure signal line
- 7x 0.25 mm
- Core diameter including insulation
- approx. 1.55 mm
- Coupling resistance
- ≤ 20.00 mΩ/m (at 10 Hz)
- External cable diameter D
- 6.5 mm ±0.2 mm
- External sheath, color
- signal red RAL 3020
- Flame resistance
- according to UL 1685 (CSA FT 4)
- Insulation resistance
- ≥ 0.5 GΩ*km
- Material conductor insulation
- PE
- Material, inner sheath
- PVC
- Minimum bending radius, fixed installation
- 3 x D
- Minimum bending radius, flexible installation
- 7 x D
- Nominal voltage, cable
- 600 V
- Other resistance
- UV resistant According to UL 1581, Section 1200
- Outer sheath, material
- PVC
- Outer sheath thickness
- approx. 0.9 mm
- Overall twist
- Star quad
- Resistance to oil
- Resistant to oil to a limited extent
- Shielding
- Tinned copper braided shield
- Signal runtime
- 5.3 ns/m
- Signal type/category
- Sercos CAT5 (IEC 11801), 100 Mbps
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- Type of pair shielding
- Aluminum-lined polyester foil
- UL AWM style
- 21694 (60°C / 600 V)
- Wave impedance
- 100 Ω ±15 Ω (at 100 MHz)
- Wire colors
- White, yellow, blue, orange
Characteristics head 1
- Ambient temperature (operation)
- -25 °C - 90 °C
- Coding
- D (Data)
- Color
- black
- External sheath, color
- signal red RAL 3020
- Head type
- Plug straight M12 SPEEDCON / IP67
- Insertion/withdrawal cycles
- ≥ 100
- Insulation resistance
- ≥ 100 MΩ
- Material (component)
- TPU, hardly inflammable, self-extinguishing (Grip)
- Ni/Au (Contact surface)
- Zinc die-cast, nickel-plated (Screw connection)
- CuSn (Contact)
- PA (Contact carriers)
- No. of positions (pin connector pattern)
- 4
- Outer sheath, material
- PVC
- Shielded
- yes
- Torque
- 0.4 Nm
- Type type, plug side
- Plug straight
- Type type, socket side
- Plug, straight
Characteristics head 2
- Ambient temperature (operation)
- -25 °C - 90 °C
- Coding
- D (Data)
- Color
- black
- Head type
- Plug straight M12 SPEEDCON / IP67
- Insertion/withdrawal cycles
- ≥ 100
- Insulation resistance
- ≥ 100 MΩ
- Material (component)
- PA (Contact carriers)
- Zinc die-cast, nickel-plated (Screw connection)
- Ni/Au (Contact surface)
- TPU, hardly inflammable, self-extinguishing (Grip)
- CuSn (Contact)
- No. of positions (pin connector pattern)
- 4
- Torque
- 0.4 Nm
Dimensions
- Length of cable
- 5 m
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
General data
- Degree of protection
- IP65/IP67
- Number of positions
- 4
- Rated current at 40°C
- 4 A
- Rated voltage
- 60 V DC
- 48 V AC
- Signal type/category
- Sercos CAT5 (IEC 11801), 100 Mbps
- Standards/regulations
- M12 connector IEC 61076-2-101
Standards and Regulations
- Standards/specifications
- M12 connector IEC 61076-2-101
