Phoenix Contact 1410531
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

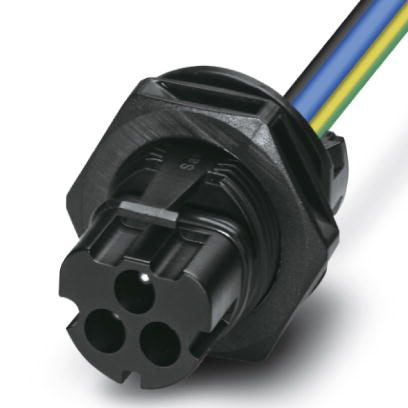

PRC device connector, black, 3-pos., 690 V (IEC 61984), 32 A, crimp connection, 4.0 mm² with 150 mm cable length, ferrule with insulating collarDevice connector, rear mounting 1410531
Phoenix Contact 1410531 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Conductor data
- Fixed cable length
- 150 mm
- Single wire, color
- black, blue, green/yellow
- Single wire, material
- PVC
- Wire diameter incl. insulation
- 4.15 mm ±0.15 mm
Connection data
- Conductor cross section flexible max.
- 4 mm²
- Rated current
- 32 A (with 4 mm² conductor cross section)
- Rated voltage (III/2)
- 690 V
- Torque
- 2.5 Nm ±0.1 Nm (Tightening torque nut)
- Type of contact
- Pin
- Wrench size, union nut
- 32 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
General data
- Color
- black
- Degree of protection (not plugged in)
- IP65 (Lengthwise waterproofing)
- Degree of protection (when plugged in)
- IP66 / IP68 (2m / 24h) / IP69K
- Insertion force
- 30 N ±10 N
- Insertion/withdrawal cycles
- 100
- Locking type
- Snap-in locking
- Number of positions
- 3
- Protection class
- II
- Pull-out-force
- 150 N ± 50 N
Material data
- Contact carrier material
- mPPE
- Contact material
- Cu
- Contact surface material
- silver-plated
- Flammability rating according to UL 94
- V0
Standards and Regulations
- Flammability rating according to UL 94
- V0
