Description

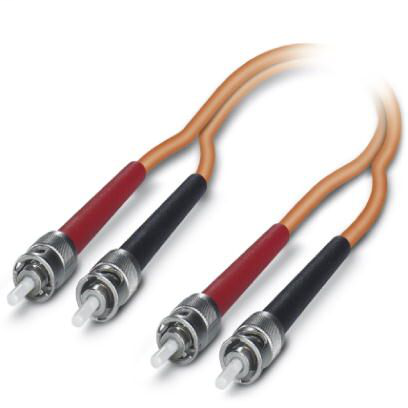

Assembled FO cable, zip cord cable, multi-mode fiberglass 50/125 µm, OM2, plug: B-FOC (ST)/B-FOC (ST), degree of protection: IP20, for installation in cable ducts or control cabinets, length: 1 mFO patch cable - FOC-ST:A-ST:A-GZ01/1 - 1409824
Phoenix Contact 1409824 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -5 °C - 50 °C
- Ambient temperature (operation)
- -10 °C - 60 °C
- Ambient temperature (storage/transport)
- -10 °C - 60 °C
Electrical characteristics
- Lateral strength
- 60 N/cm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Line characteristics
- Cable abbreviation
- I-V(ZN)H
- Cable, attenuation
- 2.7 dB/km (at 850 nm); 0.8 dB/km (at 1300 nm)
- cable layer type
- Indoors
- Cable type
- Fiberglass
- Cable weight
- 15.80 kg/km
- External cable diameter
- 2.8 mm (Zip cord)
- External sheath, color
- orange
- Fiber
- 50/125 µm
- Fiber type
- Multi-mode 50/125 µm fiberglass
- Flame resistance
- yes
- Halogen-free
- complying with IEC 60754-1/2
- Number of fibers
- 2
- Outer sheath, material
- LSZH
- Smallest bending radius, fixed installation
- 30 mm
- Smallest bending radius, movable installation
- 60 mm
- Tensile strength short-term/long-term
- 600 N
- Transmission medium
- Multi-mode fiberglass
- Type of cable
- Zip cord
- Wavelength
- 850, 1300 nm
Mechanical characteristics
- Weight
- 42.7 g
Standards and Regulations
- Flame resistance
- yes
- Flammability rating according to UL 94
- V0
- Halogen-free
- complying with IEC 60754-1/2
