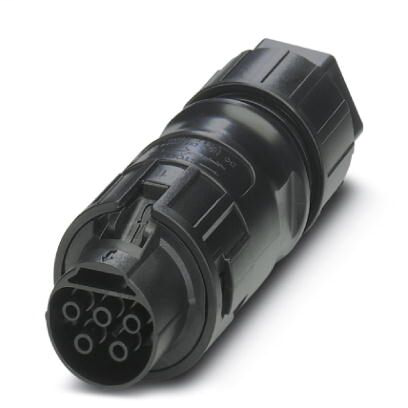

Phoenix Contact 1409205

Connection data

• Cable diameter1
  • 12 mm - 16 mm
• Conductor cross section flexible max.
  • 6 mm²
• Conductor cross section flexible min.
  • 4 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.
  • 6 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min.
  • 1.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.
  • 6 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.
  • 1.5 mm²
• Conductor cross section solid max.
  • 6 mm²
• Conductor cross section solid min.
  • 1.5 mm²
• Connection method
  • Screw connection
• Degree of protection
  • IP66 / IP68 (2m / 24h) / IP69K
• Insertion force
  • 40 N ±10 N
• Insulating material group
  • I / CTI 600
• Nominal voltage ATD
  • 690 V AC (in accordance with IEC 61984)
  • 600 V AC (In accordance with UL 2238)
  • 500 V AC (in accordance with IEC 61535/2 PfG 1915)
• Overvoltage category
  • III
• Pull-out-force
  • 175 N ± 50 N
• Rated current
  • 21.4 A (With 6 mm² conductor cross section and 85 °C in accordance with 2 PfG 1915)
  • 30 A (With 6 mm²/AWG 10, in accordance with UL 2238)
  • 35 A (With 6 mm² conductor cross section in accordance with IEC 61984)
  • 32 A (With 6 mm² conductor cross section in accordance with IEC 61535)
• Rated voltage (III/2)
  • 690 V
• Stripping length
  • 12 mm
• Stripping length of the individual wire
  • 12 mm (Lay PE conductor 8 mm leading)
• Stripping length of the sheath
  • 50 mm
• Torque
  • max. 1 Nm (Contact screw)
• Type
  • Can only be released with a tool
• Type of contact
  • Socket

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years

General data

• Color
  • black
• Degree of protection (when plugged in)
  • IP66 / IP68 (2m / 24h) / IP69K
• Height
  • 37.6 mm
• Insertion force
  • 40 N ±10 N
• Insertion/withdrawal cycles
  • 100
• Length
  • 107.5 mm
• Locking type
  • Snap-in locking
• Number of positions
  • 5
• Protection class
  • II
• Pull-out-force
  • 175 N ± 50 N
• Width
  • 37.6 mm

Material data

• Cable gland material
  • PPE
• Cable seal material
  • EPDM
• Color of the housing part
  • black
• Contact carrier material
  • PPE
• Contact material
  • Cu
• Contact surface material
  • silver-plated
• Housing material
  • PPE
• Knurl material
  • PPE
• O-ring material
  • EPDM
• Seal material
  • EPDM

Standards and Regulations

• Flammability rating according to UL 94
  • V0
• Halogen-free
  • yes
