Phoenix Contact 1408057
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

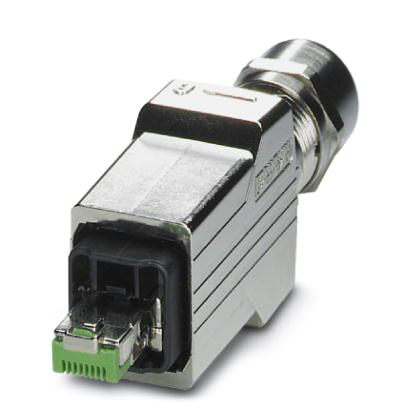

RJ45 connector, degree of protection: IP65/IP67, number of positions: 8, 1 Gbps, material: Stainless steel 1.4404, connection method: IDC fast connection, connection cross section: AWG 26- 24, cable outlet: straightRJ45 connector - CUC-V14-C1S-S/R4IE8:10 - 1408057
Phoenix Contact 1408057 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -10 °C - 40 °C
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
Electrical characteristics
- Degree of pollution
- 2
- Frequency range
- to 100 MHz
- GRP transmission properties
- CAT5 (IEC 11801:2002)
- Number of positions
- 8
- Overvoltage category
- I
- Rated current
- 1.75 A
- Rated voltage (III/3)
- 72 V (DC)
- Transmission characteristics (category)
- CAT5 (IEC 11801:2002)
- Transmission speed
- 1 Gbps
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material data
- Contact carrier material
- PC
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Height
- 34 mm
- Housing material
- Stainless steel 1.4404
- Length
- 80 mm
- Width
- 22 mm
Mechanical characteristics
- AWG multi-stranded max.
- 24
- AWG multi-stranded min.
- 26
- AWG solid max.
- 24
- AWG solid min.
- 26
- Cable outlet
- straight
- Conductor cross section
- 0.14 mm² - 0.25 mm² (flexible)
- 0.14 mm² - 0.23 mm² (solid)
- Connection method
- IDC fast connection
- Degree of pollution
- 2
- Locking type
- Push Pull
- Maximum external conductor diameter
- 10 mm
- Minimum external conductor diameter
- 5.5 mm
- No. of cable outlets
- 1
- Overvoltage category
- I
- Weight
- 22.22 g
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standards/specifications
- IEC 61076
