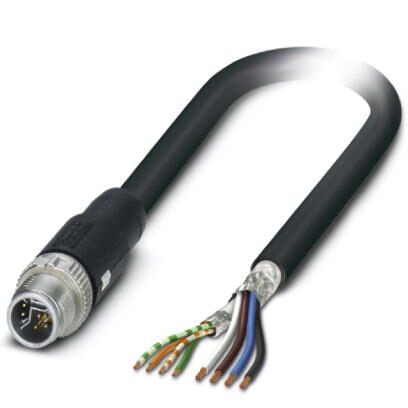

Phoenix Contact 1407488

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 90 °C (M12 connector)
• Degree of protection
  • IP65
  • IP67

Cable

• Acceleration
  • 3 m/s²
• Ambient temperature (operation)
  • -30 °C - 70 °C (cable, flexible installation)
  • -40 °C - 90 °C (cable, fixed installation)
• Attenuation
  • 13.5 dB (at 20 МHz)
  • 12.1 dB (at 16 MHz)
  • 9.5 dB (at 10 MHz)
  • 24.8 dB (at 62.5 МHz)
  • 17.1 dB (at 31.25 МHz)
  • 6 dB (at 4 МHz)
  • 32 dB (at 100 MHz)
• AWG power supply
  • 20
• AWG signal line
  • 26
• Cable structure
  • 1x4xAWG26+1x4xAWG20
• Cable type
  • Ethernet hybrid
• Cable type (abbreviation)
  • 94H
• Cable weight
  • 87 kg/km
• Conductor cross section
  • 4x 0.15 mm² (Data)
  • 4x 0.6 mm² (Power)
• Conductor material
  • Bare Cu litz wires
• Conductor structure signal line
  • 19x 0.10 mm
• Conductor structure, voltage supply
  • 19x 0.20 mm
• Core diameter including insulation
  • 1.4 mm (Power)
  • 1.05 mm (Data)
• Differential impedance
  • 100 Ω ±5 % (at 100 MHz)
• External cable diameter D
  • 7.6 mm ±0.2 mm
• External sheath, color
  • black RAL 9005
• Flame resistance
  • in acc. with UL 1581, section 1061
• Halogen-free
  • in accordance with DIN VDE 0472 part 815
  • according to IEC 60754
• Insulation resistance
  • ≥ 5 GΩ*km
• Loop resistance
  • ≤ 280.00 Ω/km (Data)
  • ≤ 34.60 Ω/km (Power)
• Material conductor insulation
  • PP (Data)
  • PP (Power)
• Minimum bending radius, drag chain applications
  • 10 x D
• Minimum bending radius, fixed installation
  • 5 x D
• Minimum bending radius, flexible installation
  • 10 x D
• Near end crosstalk attenuation (NEXT)
  • 47.2 dB (at 16 MHz)
  • 38.4 dB (at 62.5 МHz)
  • 42.9 dB (at 31.25 МHz)
  • 35.3 dB (at 100 MHz)
  • 50.3 dB (at 10 MHz)
  • 56.3 dB (at 4 МHz)
  • 45.8 dB (at 20 МHz)
• Nominal voltage, cable
  • ≤ 50 V (Peak value, not for high-power applications)
• Number of bending cycles
  • 2000000
• Optical shield covering
  • 85 %
• Other resistance
  • Low adhesion
• Outer sheath, material
  • PUR
• Overall twist
  • 1 star quad and 4 wires with 2 fillers
• Resistance to oil
  • according to IEC 60811-2-1
  • according to VDE 0282 Part 10
• Shield attenuation
  • ≥ 80 dB (30 MHz - 125 MHz)
• Shielding
  • Tinned copper braided shield
• Signal type/category
  • Ethernet hybrid CAT5 (IEC 11801), 100 Mbps
• Special properties
  • Free of substances which would hinder coating with paint or varnish
  • Silicone-free
• Tensile strength GRP
  • 240 N (in accordance with DIN EN 50565-1 for fixed installation)
  • 70 N (in accordance with DIN EN 50565-1 for flexible installation)
• Test voltage Core/Core
  • 1500 V (50 Hz, 1 min.)
• Test voltage Core/Shield
  • 1500 V (50 Hz, 1 min.)
• Traversing path
  • 4.5 m
• Traversing rate
  • 3 m/s
• UL AWM style
  • 20963 (80°C/30 V)
• Wave impedance
  • 100 Ω ±15 Ω (4 MHz - 100 MHz)
• Wire colors
  • White/orange, orange, white/green, green, white, blue, brown, black
• Working capacitance
  • nom. 50 nF (per kilometer)

Characteristics head 1

• Ambient temperature (operation)
  • -25 °C - 90 °C
• Coding
  • Y (Hybrid)
• Color
  • black
• External sheath, color
  • black RAL 9005
• Head type
  • Plug straight M12 SPEEDCON / IP67
• Insertion/withdrawal cycles
  • ≥ 100
• Insulation resistance
  • ≥ 100 MΩ
• Material (component)
  • Zinc die-cast, nickel-plated (Screw connection)
  • CuZn (Contact)
  • Ni/Au (Contact surface)
  • PP (Contact carrier, data)
  • PA (Contact carrier, power)
  • TPU, hardly inflammable, self-extinguishing (Grip)
• No. of positions (pin connector pattern)
  • 8 (4+4)
• Outer sheath, material
  • PUR
• Shielded
  • yes
• Torque
  • 0.4 Nm
• Type type, plug side
  • Plug straight
• Type type, socket side
  • free cable end

Characteristics head 2

• Color
  • black
• Head type
  • free cable end

Dimensions

• Length of cable
  • 2 m

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

General data

• Contact carrier material
  • PP / PA 6 GF
• Contact material
  • CuZn
• Contact surface material
  • Ni/Au
• Degree of protection
  • IP65/IP67
• Note
  • Further products with variable cable type and variable cable length can be found in the accessories section
• Number of positions
  • 8
• Rated current at 40°C
  • 6 A (Power)
  • 0.5 A (Data)
• Rated voltage
  • 48 V AC (Power and data)
  • 50 V DC (Power and data)
• Signal type/category
  • Ethernet hybrid CAT5 (IEC 11801), 100 Mbps
• Standards/regulations
  • M12 connector IEC 61076-2-113

Standards and Regulations

• Standards/specifications
  • M12 connector IEC 61076-2-113
