Phoenix Contact 1407299
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

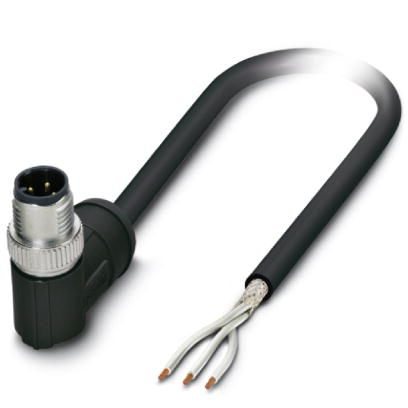

Sensor/actuator cable, 3-position, PE-X halogen-free, black, shielded, Plug angled M12 SPEEDCON, A-coded, on free cable end, cable length: 2 m, For railway applicationsSensor/actuator cable 1407299
Phoenix Contact 1407299 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (Plug / socket)
- Degree of protection
- IP65
Cable
- Ambient temperature (operation)
- -25 °C - 90 °C (cable, flexible installation)
- -50 °C - 120 °C (cable, fixed installation)
- AWG signal line
- 20
- Cable type
- Shielded black RADOX®
- Cable type (abbreviation)
- 28R
- Cable weight
- 51 kg/km
- Concentration of fumes
- EN 61034-2
- UL 1685, 12 (FT4)
- BS 6853 D.8.7
- Conductor cross section
- 3x 0.5 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 40.1 Ω/km
- Conductor structure signal line
- 19x 0.18 mm
- Core diameter including insulation
- 1.43 mm
- External cable diameter D
- 5.3 mm ±0,3 mm
- External sheath, color
- black
- Fire protection in rail vehicles
- BS 6853 (Category Ia, Ib, II)
- UNI CEI 11170 (Risk level LR1 - LR4)
- NFPA 130
- GM/RT 2130 (Category Ia, Ib, II)
- NF F16-101 (Class C/F0)
- NF F16-101 (Category A1, A2, B)
- EN 45545 (Risk level HL1 - HL3)
- DIN 5510 (Fire protection level 1, 2, 3, 4)
- Flame resistance
- NF C32-070, 2.1
- EN 50266
- UL 1685, 12 (FT4)
- EN 60332-1-2
- NF C32-070, 2.2
- EN 50305, 9.1.2
- in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
- Fume corrosiveness
- EN 50267-2-2
- Fume toxicity
- EN 50305, 9.2
- BS 6853 B.1
- Halogen-free
- According to EN 50267-2-1
- Material conductor insulation
- PE-X
- Minimum bending radius, fixed installation
- 3 x D
- Minimum bending radius, flexible installation
- 4 x D
- Nominal voltage, cable
- ≤ 900 V DC (Core-ground, V0)
- ≤ 720 V AC (core-ground)
- 600 V AC (Core-ground, U0)
- ≤ 1200 V AC (Core-ground, Um)
- ≤ 1500 V DC (core-core)
- 1000 V AC (Core-ground, U)
- Other resistance
- Resistance to fuels according to IRM 903, 168 h at 70 °C
- Outer sheath, material
- PE-X
- Overall twist
- 3 wires, twisted
- Resistance to oil
- according to IRM 902, 72 h at 100 °C
- Shielding
- Tinned copper braided shield
- Test voltage, cable
- 3500 V AC (50 Hz, 5 min.)
- 8400 V DC (50 Hz, 5 min.)
- Wire colors
- White 1, white 2, white 3
Dimensions
- Length of cable
- 2 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material
- Contact carrier material
- PA 6.6
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- V0
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- PA 6.6
- Standards/regulations
- PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standard designation
- Shock, vibration
- M12 connector
- Standards/regulations
- IEC 61076-2-101
- EN 50155
