Description

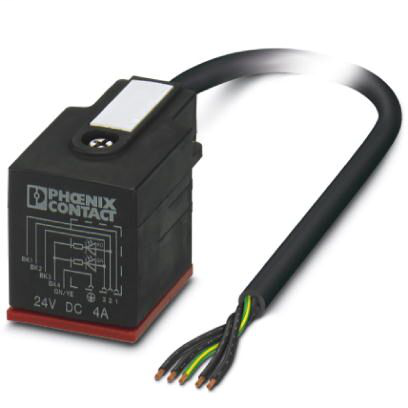

Sensor/actuator cable, 5-position, PUR halogen-free, black RAL 9005, free cable end, on Valve connector AD (pressure switch), with 2 LEDs, cable length: 5 m, for outdoor applications, With stainless steel central screw and additional silicone seal (red)Sensor/actuator cable - SAC-5P- 5,0-PUO/AD-2L OD - 1407293
Phoenix Contact 1407293 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (valve plug)
- Degree of protection
- IP67
- IP68
- IP66K (Observe tightening torque)
- IP65
Cable
- Ambient temperature (operation)
- -40 °C - 105 °C (cable, fixed installation)
- -15 °C - 105 °C (cable, flexible installation)
- AWG signal line
- 20
- Cable abbreviation
- Li9Y11Y
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUO
- Conductor cross section
- 5x 0.5 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 40.1 Ω/km
- Conductor structure signal line
- 16x 0.20 mm
- Core diameter including insulation
- 2 mm ±0.05 mm
- External cable diameter D
- 6.9 mm ±0.1 mm
- External sheath, color
- black RAL 9005
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- According to EN 50267-2-1
- Insulation resistance
- 70 GΩ*km
- Material conductor insulation
- PP
- Minimum bending radius, fixed installation
- 10 x D
- Minimum bending radius, flexible installation
- 15 x D
- Nominal voltage, cable
- 300 V
- Other resistance
- Good resistance to aggressive media
- hydrolysis and microbe resistant
- UV resistant
- Outer sheath, material
- PUR
- Overall twist
- 5 cores, twisted
- Resistance to oil
- According to DIN EN 50306
- According to DIN EN 60811-2-1, 138 h at 100°C
- Test voltage Core/Core
- 3000 V (Spark test)
- Wire colors
- Black 1, black 2, black 3, black 4, green/yellow
Dimensions
- Central screw valve connector
- M3 x 29
- Length of cable
- 5 m
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material
- Flammability rating according to UL 94
- V0
- Material housing valve plug
- TPU
- Sealing material
- Silicon (Seal snapped in)
- TPU (Seal molded)
- Valve plug contact insert material
- PA 6
- Valve plug contact material
- CuSn
- Valve plug contact surface material
- Sn
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standards/specifications
- Valve connector EN 175301-803
