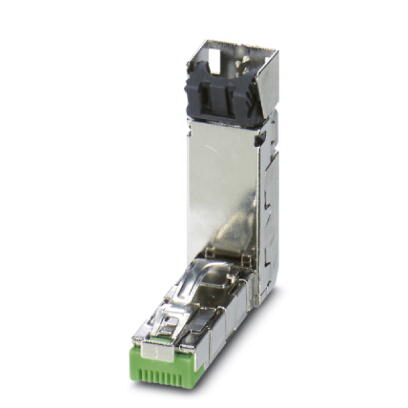

Phoenix Contact 1406356
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RJ45 connector, degree of protection: IP20, number of positions: 6, 100 Mbps, CAT5 (IEC 11801:2002), material: Zinc die-cast, connection method: IDC fast connection, connection cross section: AWG 26- 24, cable outlet: angled, High degree of resistance to vibration; 360° shielding; one-piece design; special tool-free assemblyRJ45 connector - CUC-IND-C1ZNI-B/R4QV6:30 - 1406356
Phoenix Contact 1406356 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C
Electrical characteristics
- Frequency range
- to 100 MHz
- GRP transmission properties
- CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002)
- Nominal voltage UN
- 48 V
- Number of positions
- 6
- Rated current
- 1.75 A
- Rated voltage (III/3)
- 72 V (DC)
- Transmission characteristics (category)
- CAT5 (IEC 11801:2002)
- Transmission speed
- 100 Mbps
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material data
- Contact carrier material
- PC
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Height
- 40 mm
- Housing material
- Zinc die-cast
- Length
- 13.65 mm
- Width
- 37.95 mm
Mechanical characteristics
- AWG multi-stranded max.
- 22
- AWG multi-stranded min.
- 23
- AWG solid max.
- 24
- AWG solid min.
- 26
- Cable outlet
- angled
- Conductor cross section
- 4x 0.25 mm² - 0.34 mm² (Data (solid and stranded))
- 2x 0.32 mm² (Power (solid and stranded))
- Connection method
- IDC fast connection
- Maximum external conductor diameter
- 9 mm
- Minimum external conductor diameter
- 5 mm
- No. of cable outlets
- 1
- Weight
- 19.2 g
Standards and Regulations
- Flammability rating according to UL 94
- V0
