Description

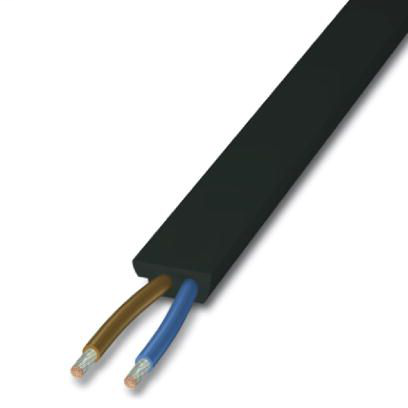

AS-Interface PVC flat conductor with UL in black, for additional power supply, 2 x 1.5 mm², 1000 m on an one-way drumFlat-ribbon conductor 1404870
Phoenix Contact 1404870 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -20 °C - 90 °C
- Ambient temperature (operation)
- -20 °C - 90 °C (Flexibly installed)
- -30 °C - 90 °C (fixed routing)
- Ambient temperature (storage/transport)
- -30 °C - 90 °C
Electrical characteristics
- Rated surge voltage
- 2 kV
- Rated voltage (III/3)
- 300 V
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Line characteristics
- Acceleration
- 4 m/s²
- Ambient temperature (operation)
- -20 °C - 90 °C (cable, flexible installation)
- -30 °C - 90 °C (cable, fixed installation)
- AWG power supply
- 16
- Bending radius
- 75 mm
- 50 mm
- Cable structure
- 2x 1.5 mm²
- Cable weight
- 73 kg/km
- Conductor cross section
- 1.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 13.7 Ω/km
- Conductor structure, voltage supply
- 84x 0.15 mm
- Core diameter including insulation
- 2.5 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- UL 1685 (CSA FT 4)
- UL 1581, Sec. 1061 (Cable Flame)
- IEC 60332-1-2
- UL 1581, Sec. 1060 (FT-1)
- Halogen-free
- no
- Insulation resistance
- ≥ 1 MΩ*km
- Material conductor insulation
- TPE
- Max. bending cycles
- 10000000
- 8000000
- Nominal voltage, cable
- 300 V
- Other resistance
- UV resistant
- Outer sheath, material
- PVC
- Resistance to oil
- UL 1581, Sec. 480 (60 °C)
- Smallest bending radius, fixed installation
- ≥ 6 mm (one-time)
- Special properties
- UL type CMG accord. to UL 444 and NEC Article 800
- UL type CL2 accord. to UL 13 and NEC Article 725
- Test voltage, cable
- 2000 V
- Thickness, insulation
- approx. 0.5 mm
- Traversing direction
- horizontal, above the broadside
- vertical, above the broadside
- Traversing rate
- 4 m/s
- Type of cable
- Flat-ribbon conductor
- Wire colors
- brown, blue
Material data
- External sheath, color
- black RAL 9005
- Height
- 4 mm
- Outer sheath, material
- PVC
Mechanical characteristics
- Cable structure
- 2x 1.5 mm²
- Length of cable
- 1000 m
- Number of positions
- 2
- Shielded
- no
- Type of cable
- Flat-ribbon conductor
